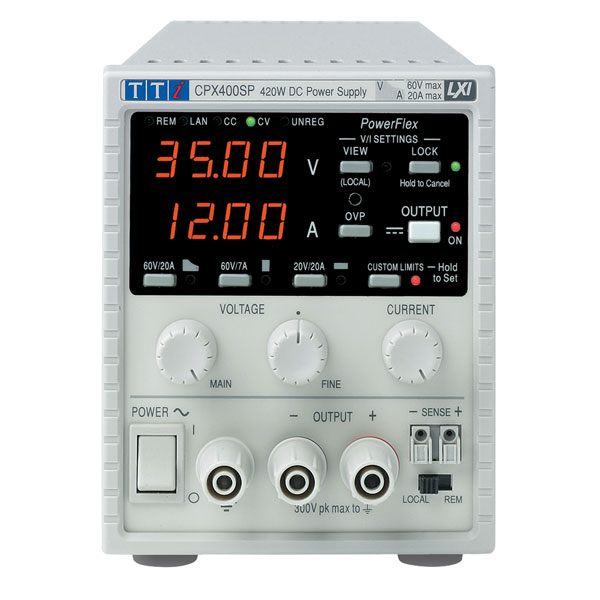

The CPX series is a different type of laboratory power supply designed to meet the need for flexibility in the choice of voltage and current. A conventional PSU has a fixed current limit giving a power capability that reduces directly with the output voltage. The TTi PowerFlex design of the CPX series enables higher currents to be generated at lower voltages within an overall power limit envelope.
Each output can provide considerably higher current than a conventional PSU of the same maximum voltage and power. The two outputs of the CPX400D are completely independent and electrically isolated from each other. With V-Track selected, the two outputs remain electrically isolated, but the voltage control of the Master output sets an identical voltage on the Slave output.
This enables the user to create two rails of either polarity and to reference them to different grounds if necessary (e.g. digital ground and analog ground). Alternatively the outputs can be wired in series or parallel to create a voltage capability up to 120V or a current capability up to 40A with the voltage set using a single control.
Not recommended for use as a battery charger.
Number of Outputs | 1 |
---|---|
Output Current Max. | 20A |
Output Current Min. | 0A |
Output Voltage Max. | 60V |
Output Voltage Min. | 0V |
Power Rating | 420W |
Supply Voltage Range | 110 / 240V |
Temperature Range | +5 to +40°C |
