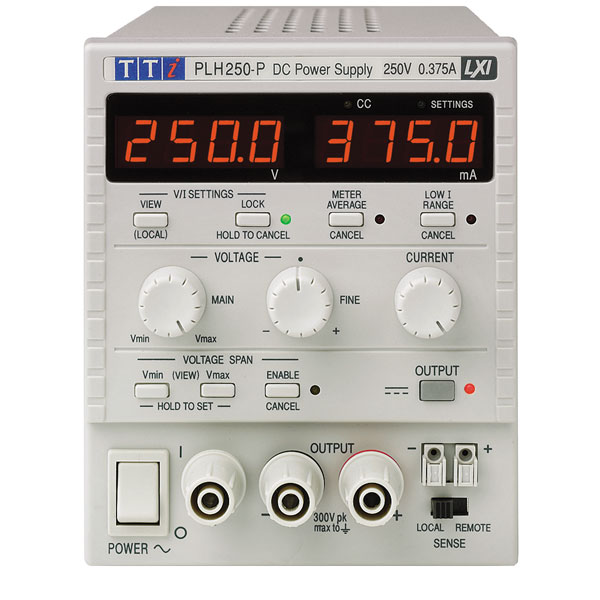

The Aim-TTi PLH250-P retains the ultra compact format, high power density, and smart analog controls of the PLH250-P, but offers voltages up to 250V to cover applications beyond the capabilities of standard bench PSUs and into areas such as magnetics.
As technology has changed, many products have moved from analog controls to digital ones. Although digital controls suit many instruments, they do not necessarily suit a bench power supply. Customer research shows that many users prefer the speed and simplicity of conventional analog controls for setting voltage and current. Digital controls may offer greater precision, but often at the expense of ease of use. With this in mind, the Aim-TTi PLH250-P has retained the true analog controls of its best selling sister products, the PL series.
The main disadvantage of analog controls is stability and security. The settings of analog potentiometers can drift over time. More importantly, the settings can be changed accidentally with potentially serious consequences. The Thurlby Thander PLH250-P incorporates S-Lock. One press of the Lock button transfers control of voltage and current from the analog controls to internal digital circuitry. This offers not just complete security, but exceptional stability as well with each setting controlled by an instrumentation quality DAC.
Not recommended for use as a battery charger.
Number of Outputs | 1 |
---|---|
Output Current Max. | 0.375A |
Output Current Min. | 0A |
Output Voltage Max. | 250V |
Output Voltage Min. | 0V |
Power Rating | 94W |
Supply Voltage Range | 115 / 230V |
Temperature Range | +5 to +40°C |
