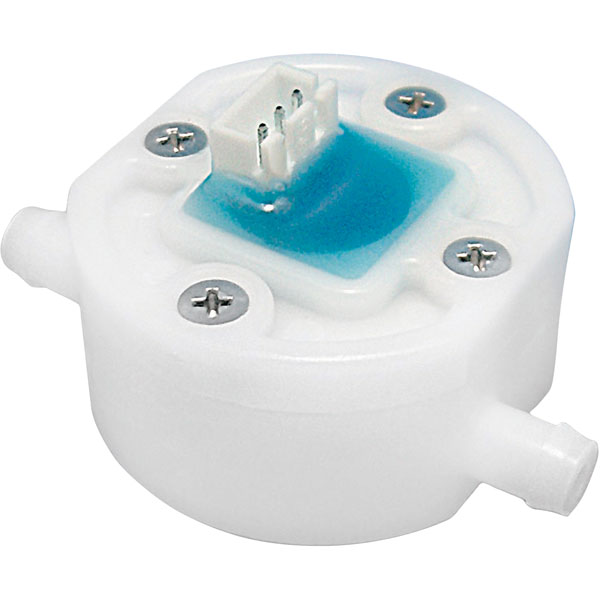

Bio-Tech FCH-M-POM-LC AD 6 MM Non Aggressive Liquids Low Flow Flowmeter

Flow meter for measuring water, gasoline, diesel, fuel oil, lubricants, coolant and other liquid medim. Ideal for measuring small quantities of in Metering device and laboratory. All parts in contact with the medium are made from plastic. The integrated sensor provides an exact modulated signal. Turbine measuring principle, random installation position.
With extra inserting nozzle.

Supplied with mating contact and crimp terminals

Matching consumption display/flow controller see ARS 260/ARS 261, FCC-01-CO.
Inserting nozzle D = 1.6 mm; connector cases; 3 crimp contacts; data sheet.

Connection	2 x AD = 6 mm hose nozzle
Dimensions	58 x 41 x 27mm
Material	POM
Measurement Range	3l/min
Nominal operating pressure	4bar
Operating Voltage	5 to 24V
Temperature Range	-20 to +80°C
Type	Flow meter
