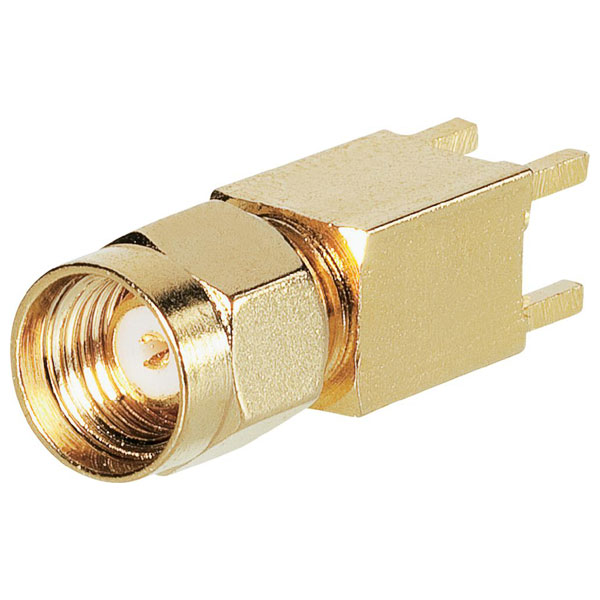

BKL 0419024 SMA Reverse Male PCB Mount Vertical 50 Ohm Gold-plated 25mm High

BKL Electronics 0419024 SMA plug connecters are used mainly for applications in the frequency ranges 1GHz to 18/26.5GHz (depending upon the design). SMA stands for Sub-Miniature-A. The male SMA connectors have a central pin and an internal thread whilst Reverse SMA (RP-SMA) male connectors have central socket contact and an internal thread. They have a high mechanical strength owing to the 8mm screw lock.

• Connection : Print
• Connector type: Socket, vertical
• Connector type : SMA reverse polarity connector
• Content: 1 pc
• Impedance: 50 Ω
• Manufacturer part No.: 0419024
• Material: Gold-plated
• Specification: (socket contact) 180º PCB version
