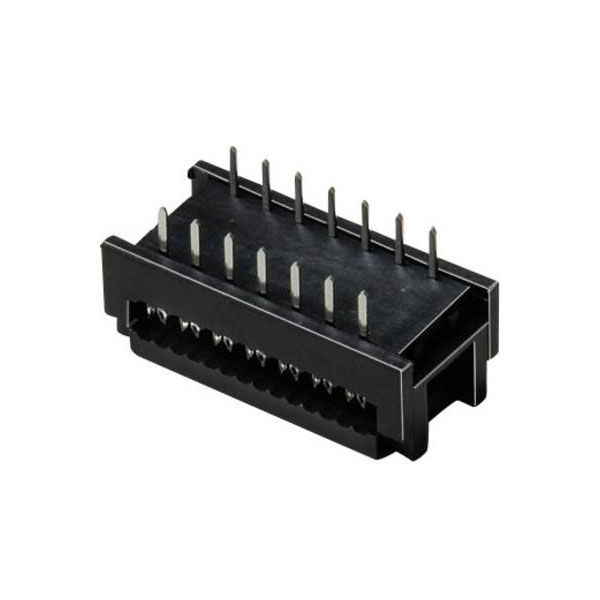

BKL 10120884 PCB Connector 24 Pins 2 rows cut&clamp mounting tin-plated

The BKL Electronic 10120884 is a PCB connector featuring 24 pins arranged in 2 rows of 12. This connector is typically used in electronic circuits for establishing connections between different components. It is commonly applied in PCB assemblies for both commercial and consumer electronic devices.

Case material	PBT, UL94V-0
Connection	Cut & Clip
Connector orientation	Perpendicular (to the PCB)
Connector type	PCB slot, straight
Contact material	Brass
Contact surface	Gold plated
Contacts	verzinnt
CS	2.54mm
Current load capacity	1A
Dim	(L x W x H) 9.4 x 27.94 x 10.7 mm
Factory colour	Black
Height	10.7mm
Length	9.4mm
Manufacturer part #	10120884
Max. load capacity	1A
Max. temperature	+105°C
Min. temperature	-40°C
Misc Attribute	10120884
No. of rows	2
Nominal current	1A
Nominal current - rounded value	1A
Number of pins	24
Pins per row	12
RoHS-compliant	Yes
Test voltage	500V
Total no. of pins	24
Type	PCB connector
Width	27.94mm
