Bulgin BX0026 Battery Holder 2 x PP3 - Panel Mount

Name: Bulgin BX0026 Battery Holder 2 x PP3 - Panel Mount
Brand: Bulgin
Price: 12.21 GBP
Availability: InStock

Standard range

Order Code:

18-0171

Brand: Bulgin MPN: BX0026

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£12.21

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

101 in stock, despatched same dayAdditional quantity lead time 4 months

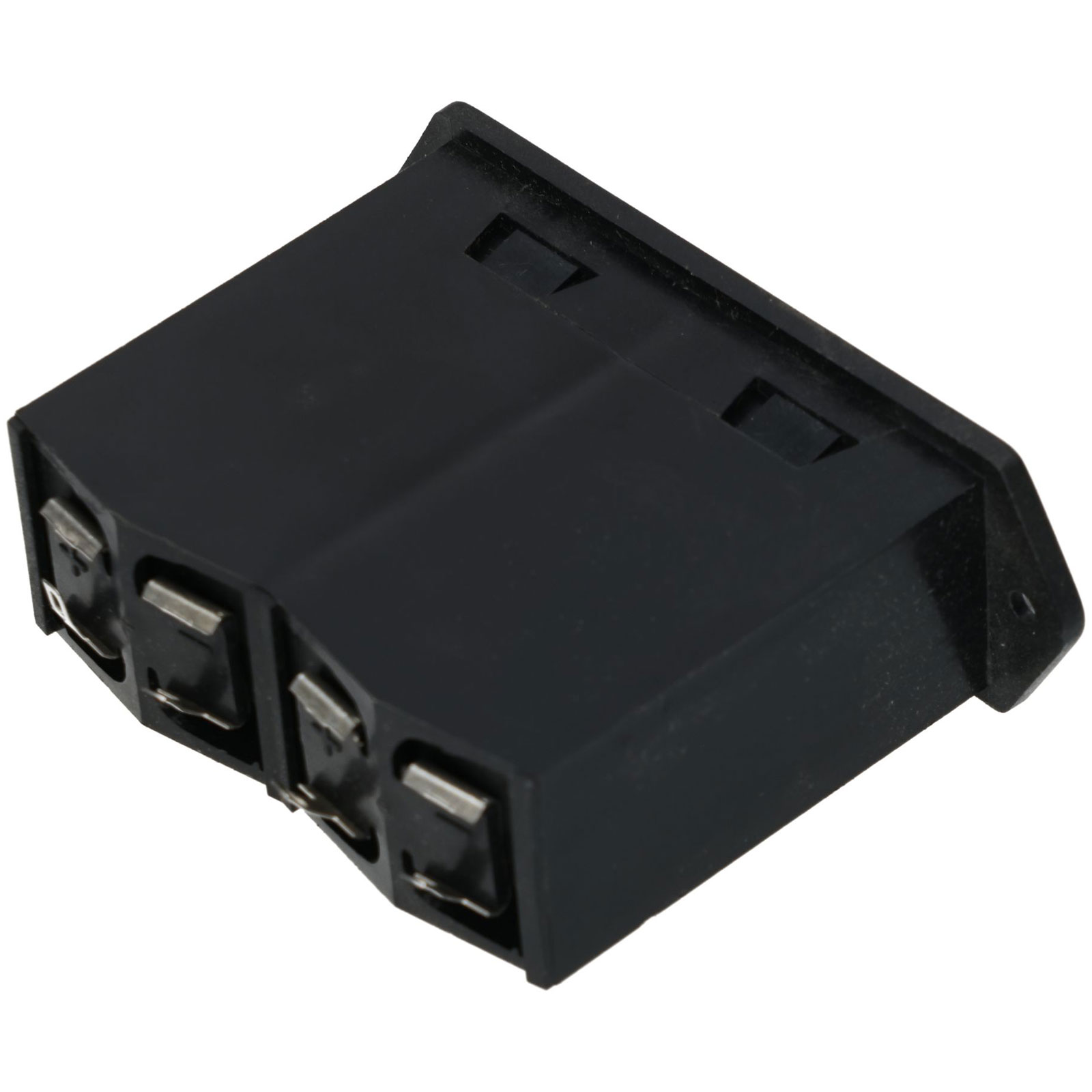

A drawer style enclosed panel mounting battery holder from Bulgin.

Accepts two PP3 type batteries
The 'snap-in' drawer is clearly marked to indicate correct battery insertion
PP3 push-on battery snaps are NOT required
Panel cutout 67.3 x 24.5mm, fixing centres 75.6 x 3.5mm dia, depth behind panel 54mm
Contact with the tin plated phosphor bronze contacts at the rear of the holder is only made when the drawer is fully inserted into the housing
External connection to the holder is made via solder tags at the rear
Bulgin part No. BX0026

Type	Battery holder
Battery Size	PP3
Body Material	Glass filled nylon
Contact Material	Tin nickel plated phosphor bronze
Height	29mm
Length	60mm
Number of Cells	2
Terminal Type	Solder tag
Width	85.6mm
