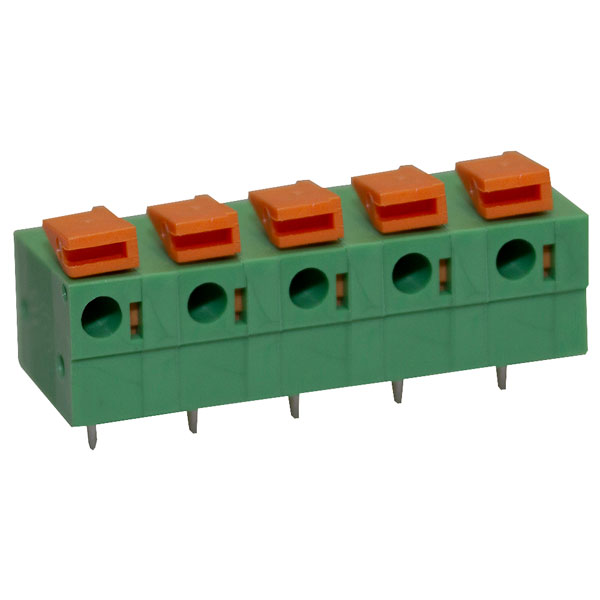

Camblock Plus CSTBP762H/5 7.62mm Horizontal Screwless Terminal Block 5p

A 5 pole 7.62mm screwless terminal block designed for use on PCBs.

The connector is ideal for use where high volume or quick assembly is required. The terminal block provides a versatile wire to board connection method, allowing for assemblies to be set up quickly and easily and also shortening the time required for maintenance.

• Rating 10A 300V
• Horizontal cable entry
• Just push in wire for secure connection
• Interlocking modules
• Easily breakable to desired number of poles
• Guided pin alignment

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Colour	Green
Current Rating	10A
Mounting Direction	Horizontal
Mounting Type	Through Hole
No. of Ways	5
Pitch	7.62mm
Wire Gauge	2.5mm²
Wire Gauge (AWG)	22 to 14AWG
Wire Termination	Screwless
