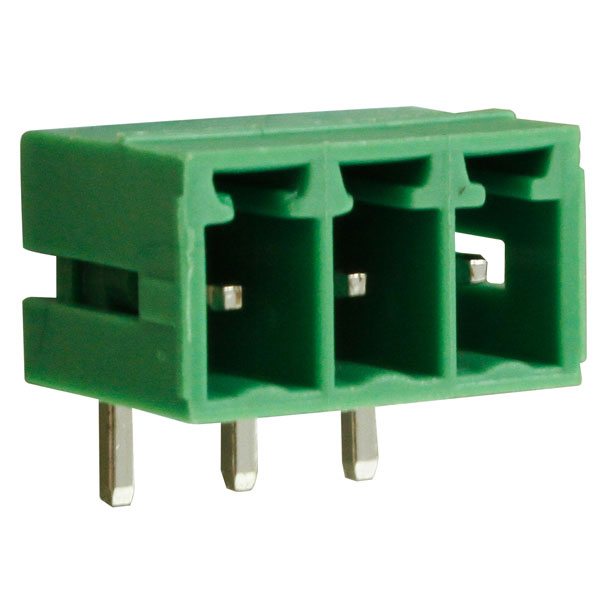

Pluggable 3-pole male horizontal terminal blocks with closed ends from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.
Moulded in UL94-V0 flame-retardant PA66
Polarised moulding
Anti-solder wicking
Guided pin alignment
Captive screws
Wire capacity 1mm² (28 to 16AWG)
Pitch 3.81mm
Length 12.8mm
Width 9.2mm
Height 7.2mm
Manufacturer's part CTBP93HE/3
Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.
