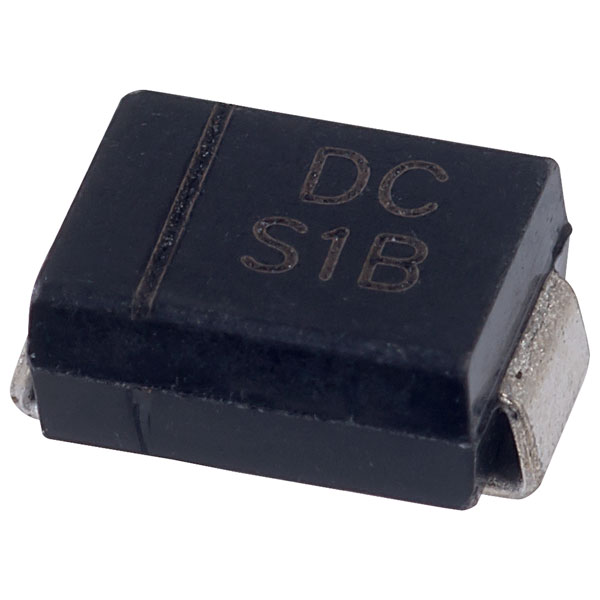

DC Components S1B Rectifier Diode SMB 1A 100V

DC Components
Standard range
Order Code:

47-2442


( Write a review )
Brand: DC Components MPN: S1B CT
PCB Symbol, Footprint or 3D Model
Report an error
Qty Unit Price (Ex VAT)
20+ £0.0280
100+ £0.0238
1000+ £0.0159

Add to Quote
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
1,630 in stock, despatched same dayAdditional quantity lead time 6 months

High quality surface mount 1A rectifier diodes in an industry standard SMB (DO-214AA) package.


  • Low profile device package
  • 100V repetitive peak reverse voltage
  • Ideal for automated placement
  • Glass passivated junction
  • Low leakage current
  • Colour band indicates polarity
  • Meets UL 94V-0
  • Supplied on 12mm tape
Average Rectified Output Current 1A
Case DO-214AA
Device S1B
Forward Voltage 1.1V
Peak Reverse Voltage 100V
Thermal Resistance 12°C/W
