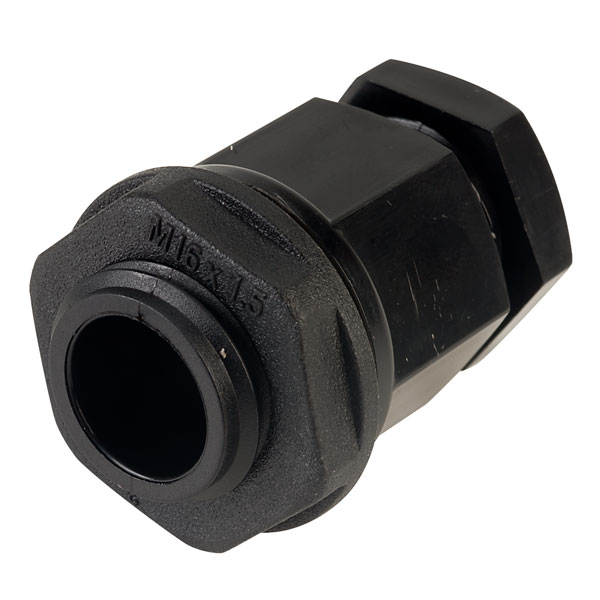

Compression M16 cable glands from Elkay moulded in black Nylon 6.6 and supplied with lock nut and soft nylon washer.
- Cable diameter range 7 to 10.5mm
- Thread length 10mm
- Designed for use with PVC and rubber cable
- Operating temperature –20°C to +100°C
- Maximum panel thickness 3.5mm
- Waterproof entry and strain relief to IP66
| Type |
Standard |
| Body Material |
Nylon |
| Thread Size |
M16 |
