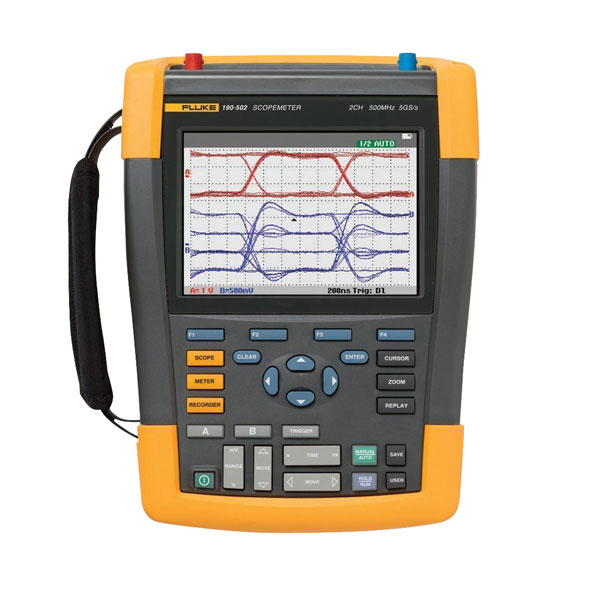

This Fluke 190-502/UK Series II ScopeMeter Portable Oscilloscope is one of the first high-performance scopes specially built for use in harsh industrial environments.
It has 2 independently insulated input channels and a bandwidth of 500MHz, coupled with an IP51 dust- and drip-water proof rating and a CAT III 1000 V/CAT IV 600V safety rating.
- Two independent floating isolated inputs, up to 1000V
- Accuracy: ±2.1% (vertical); ±0.01% (horizontal timing)
- Up to 5GS/s real time sampling (depending on how many channels used)
- Deep memory: 10,000 points per trace waveform capture (scope mode)
- CAT III 1000V/CAT IV 600V safety rated for industrial environments
- Up to seven hours of battery operation using BP291
- Isolated USB host port for direct data storage to a USB memory device
- USB device port for easy PC communication
- Easy access battery door for quick battery swaps in the field
- Compact and only 2.2kg (4.8 lb) weight
- Security slot: lock down oscilloscope with Kensington® lock while unattended
- IP51 rating, dust- and drip-proof
- Connect-and-View™ triggering for intelligent, automatic triggering on fast, slow and even complex signals
- Frequency spectrum using FFT-analysis
- Automatic capture and Replay of 100 screens
- ScopeRecord™ Roll mode gives 30,000 points per input channel for low frequency signal analysis
- TrendPlot™ paperless recorder mode with deep memory for long-term automatic measurements
- Built-in 5,000 count Digital Multimeter
- Fluke type 190-502/UK
| Accuracy |
±2.1% |
| Bandwidth |
500MHz |
| No. of Channels |
2 |
