FTCAP GMB10306335070 10000uF 63V Alum. Elec. Capacitor Screw Terminal

Order Code:

50-4011

Copy to clipboard

( Write a review )

Brand: FTCAP Copy to clipboard MPN: GMB10306335070 Copy to clipboard

RoHS Compliant
Country of Origin: Germany

Report an error

Discontinued

Product Details
Data Sheets

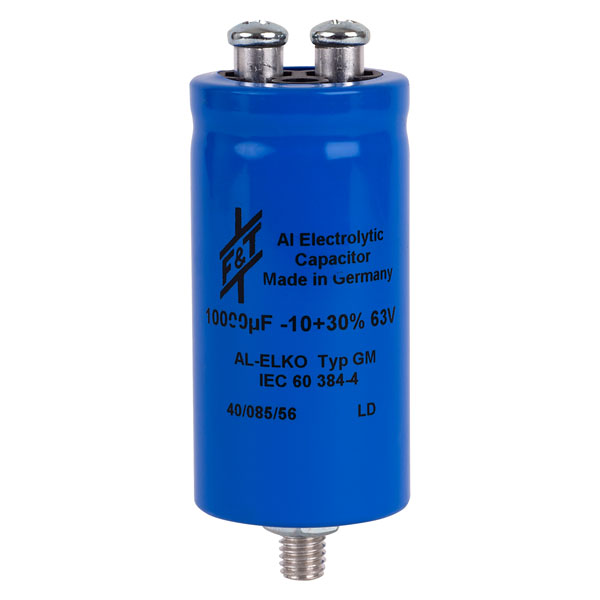

This 63V 10,000µF electrolytic capacitor is from the GMB range from Fischer and Tausche that offers high CV capacitors in a small size with long service life. Typical applications include standard and switch mode power supplies, telecommunications, audio and HiFi systems, welding, inverter/drives, computer equipment.

A suitable alternative to BHC AL30, Vishay MAL21, and Epcos B41456 ranges
Ripple current 6.6A
Dimensions ø35 x 70mm
High CV
High capacitance
Low inductance
All internal contact welded
Threaded terminals
Stud mounting
DIN 41332. IEC 384-4

Capacitance	10000µF
Dimensions	Ø35 x 70mm
Material	Aluminium
Operating Temperature	-40 to +85°C
Pitch	13mm
Tolerance	-10 to +30%
Type	Screw terminal mounting bolt
Voltage	63V
