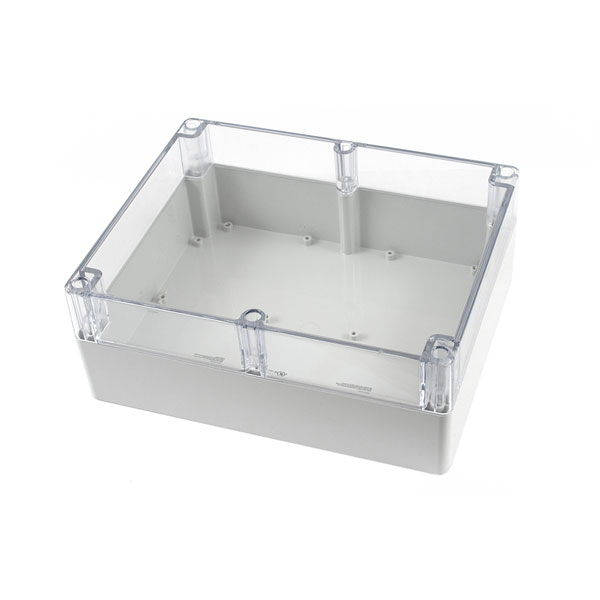

Hammond 1554YA2GYCL Watertight PC Enclosure, Clear Lid 300 x 240 x 120, Grey

This Hammond 1554 series watertight Polycarbonate enclosure is ideal for mounting PCBs or DIN rail mounted components.

The enclosure is moulded in light grey UV stabilized Polycarbonate material which carries a flammability rating of UL94-5VA and is suitable for outdoor use. The gasketed lid is manufactured from clear polycarbonate which carries a UL94V-0 rating. The lid has a two piece tongue & groove construction that provides protection against access of oil, dust and water. It is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly and disassembly.

The Polycarbonate construction meets NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68, cUL and UL 508A listed (File # E65324).

• Dimensions 300 x 240 x 120mm
• Clear lid
• Suitable for outdoor use
• Enclosure colour light grey RAL 7035
• One piece high temperature replaceable gasket
• Hardware designed to avoid corrosion caused by harsh environments
• Lid screws are self captivating
• Internal features maximized for mounting options
• Flammability rating UL94-5VA
• Hammond 1554YA2GYCL
