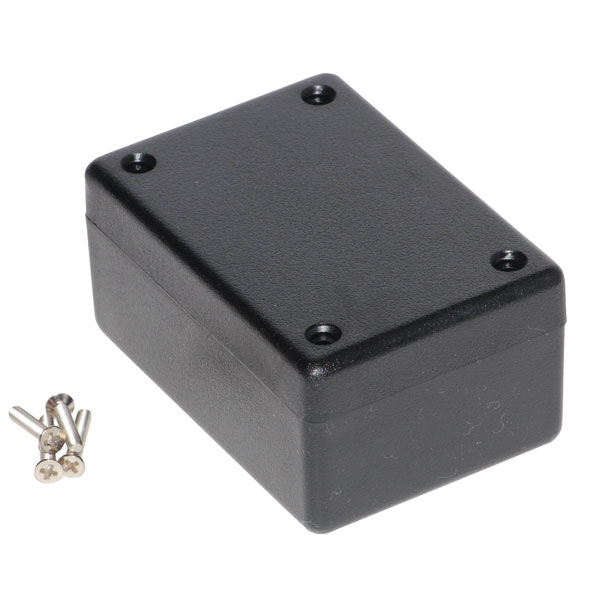

Rugged electronic instrument enclosure from Hammond, made from black ABS material, 3.3mm thick, ideal for mounting printed circuit boards.
- 81mm length, 56mm width, 40mm height
- IP54 IP rating
- Moulded from heavy duty flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
- Countersunk lid is secured with four M3x0.5-0.71in (18mm) long Phillips machine screws threaded into integral brass bushings
- Perfect for applications when repetitive assembly and disassembly is required
- Hammond part 1594BBK
| Colour |
Black |
| Enclosure Height |
40mm |
| Enclosure Length |
81mm |
| Enclosure Width |
56mm |
| External Features |
N/A |
| Internal Features |
N/A |
| Material |
ABS |
| Finish |
N/A |
| Flame Resistance |
UL94-V0 |
| IP Rating |
IP54 |
| Series |
1594 |
| Type |
Heavy duty enclosure |
