Hammond HP200PCLG IP66 Non-Metallic Hole Plug 79mm Diameter

Hammond
Standard range
Order Code:

31-1805

Brand: Hammond MPN: HP200PCLG UPC-12: 623980101675
Qty Unit Price (Ex VAT)
1+ £13.26
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 available to back orderBack-order availability date - 28/12/2024

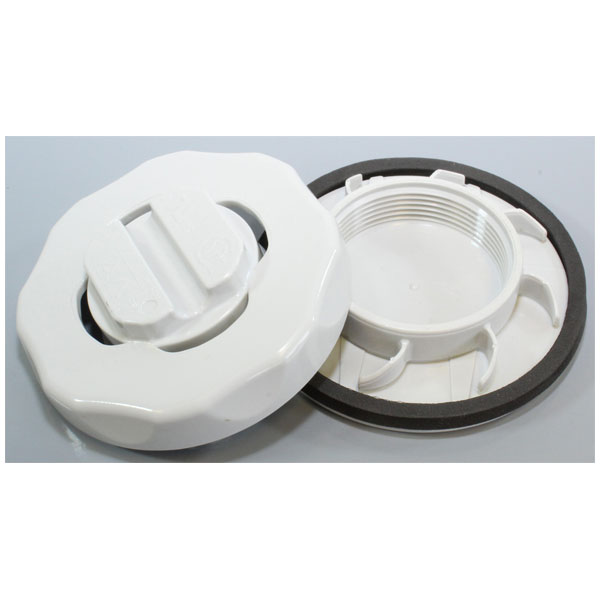

The Hammond Type 4X HPN4PC Series Hole Plug is designed to seal unused pushbutton holes, conduit openings or knock-out holes against the ingress of dust, oil and water.

Compatible with enclosure wall thickness of 1.6mm to 6.35mm.

Recognised component for use with UL & CSA listed enclosures, Type 1, 3, 3R, 4, 4X.


  • 79mm Diameter
  • RAL7035 Light Grey
  • Moulded Polycarbonate
  • 64mm Minimum Hole Diameter
  • 70mm Maximum Hole Diameter
  • Neoprene/EPDM Gasket
  • Self centring, anti-rotational design
  • Easy one person installation
  • No tools required

    • Available in 7 sizes.

    Designed to maintain the IP66/NEMA 4X rating of Enclosure once fitted.

    Hammond enclosure modification


    Colour Light Grey
    External Features Neoprene/EDPM gasket
    Internal Features N/A
    Material Polycarbonate
    Diameter 79mm
    Finish N/A
    Flame Resistance N/A
    Height N/A
    IP Rating N/A
    Length N/A
    Series HPN4PC
    Type Hole Plug
    Width 79mm
