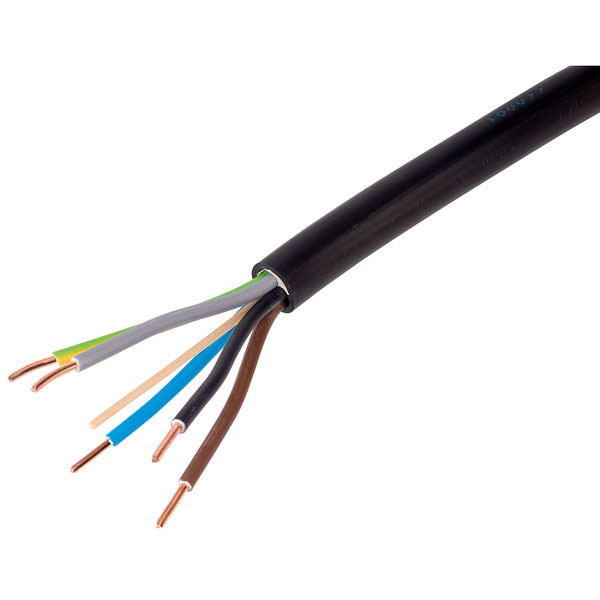

This NYY-J power cable from HeluKabel is ideal for energy supply applications where mechanical damage is unlikely. It is suitable for installation in open air, underground, in water, in concrete, indoors and in cable ducts, etc.
Number of cores: 5
Cross-sectional area: 16mm²
Core insulation: PVC
Outer sheath: PVC
Sheath colour: black
Voltage rating (Uo/U): 0.6/1kV
Temperature rating, fixed: -40°C to +70°C; flexed: -5°C to +50°C
Minimum bending radius: 12x overall diameter
Cores stranded in concentric layers
Copper conductors to DIN VDE 0295, BS 6360 and IEC 60228
Core identification to DIN VDE 0293-308, 0276 part 603
