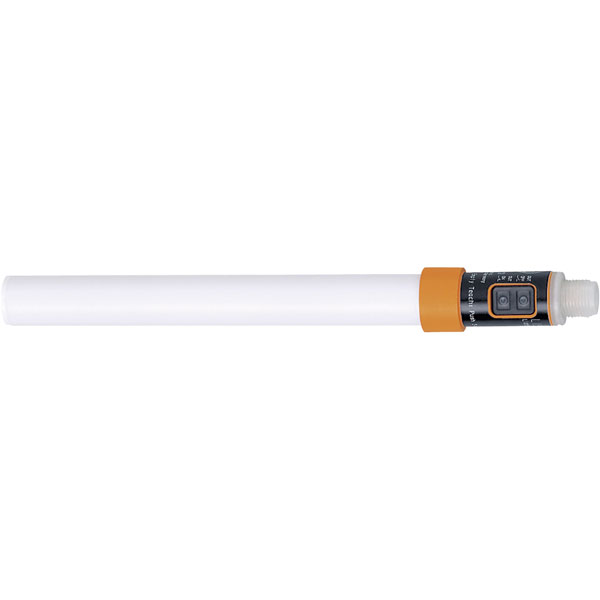

IFM LI5141 Binary Level Sensor

This binary level sensor uses the capacitive measuring principle and direct contact with media to detect when a set limit level is reached, outputting a switched signal for other process equipment. The sensor will detect media with a dielectric constant >1.8, including hydrous coolants, oils, lubricants, water and media similar to water. Ideal for applications such as monitoring liquid level in tanks, overflow protection in a supply tank for coolant emulsion, leakage monitoring in the overflow vessel of a hydraulic power pack, minimum level monitoring, etc.

• Settable NO or NC function
• Automatic adjustment to media type
• LED Indication of operating and switching status
• Terminated by M12 connector
• Probe length 132mm
• Active range 31mm
• Reverse polarity protection
• Pulsed short-circuit protection
• Overload protection
