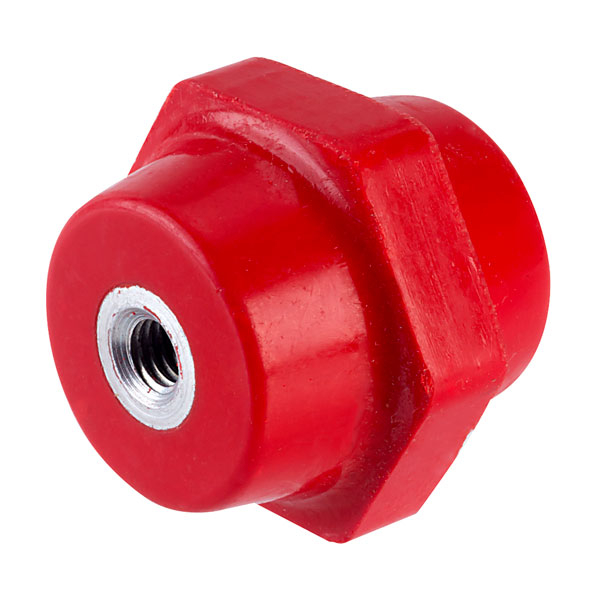

A glass-filled polyester insulating spacer with two internal M6 metal threads that are insulated from each other.
- M6 thread
- Length 30mm
- Nominal voltage 600V AC / 750V DC
- Electric strength: >10kV/mm
- Creepage distances - index (V): + 600V
- Roll-over resistance: +180s
- Impact strength: 250J/m
- White Label type ISS-630
| Type |
Hexagonal threaded: F-F |
| Body Length |
30mm |
| External Width |
33mm |
| Material |
Glass filled polyester |
| Thread Size |
M6 |
