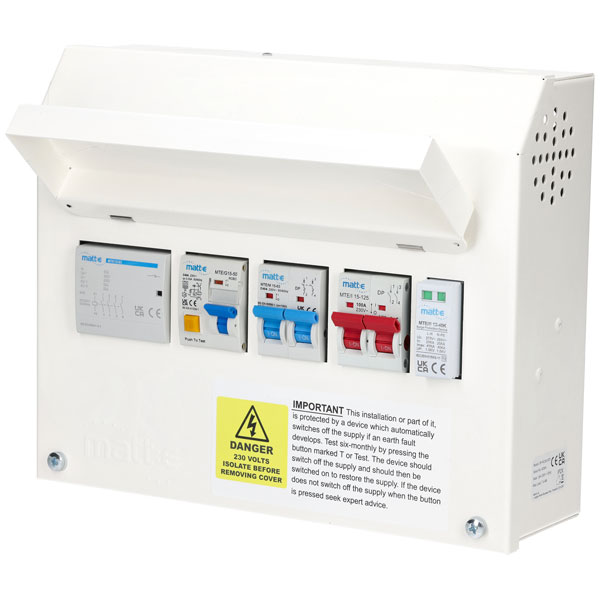

The matt:e SP-R-SPD is a single-phase connection unit, with Automatic Reset, PEN Fault Protection with Type A RCBO and built-in Type 2 SPD.
The single-phase protection device unit offers a simple, cost effective, compliant, solution for PEN fault protection. It allows for the connection of EV charge points to the PME earthing facility without the use of earth electrodes.
Helping to facilitate compliance with BS:7671. 2018 Amendment 2, 2022 Regulation 722.411.4.1 (iv).
| Colour | White |
| Dimensions (H x W x D) | 225 x 275 x 106mm |
| Voltage rating | 230V, single phase |
| Frequency | 50Hz |
| Max. Power Rating | 7.4kW |
| IP rating | IP2X |
| Material | Mild steel |
| Finish | Powder-coated |
| Warranty | 1 Year |
- Built in PEN fault protection
- No Earth Electrodes required
- Facilitates compliance with regulation 722.411.4.1 (iv)
- Helps reduce disruptive and costly groundworks
- Removes the risk of striking buried services
- Simple wire in wire out connection
- Over current protection
- Built-in Type 2 SPD and 40A Type A RCBO
- Automatic Reset
- Suitable for single phase loads up to 7.4kW
- Standard 1 Year parts warranty
- Designed and Built in the UK
- Matt:e type SP-R-SPD
| Build Type |
Pre-configured connection centre |
| IP Rating |
IP2X (Indoor) |
| Main Incoming Supply |
Single-phase (230V) |
| Max. Power Rating |
7.4kW |
| Protection Included |
PEN Fault, Auto-reset, Type A RCBO |
| SPD Included |
Yes |
