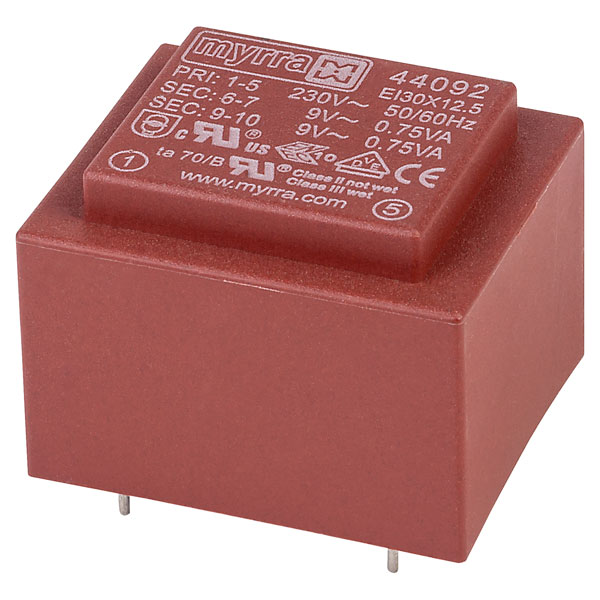

Encapsulated PCB mounting transformer, 1.5VA 0-9V, 0-9V, from the Myrra 44000 series.
- Vacuum filling
- Two-compartment bobbins
- Inherently short-circuit proof
- Self-extinguishing plastics to UL 94V-0
- Resin class B CEI 85 (20,000 hour testing to CEI 126)
- Insulation voltage 4kV (Tested to 6kV)
- Meets all the requirements of EN 61558-2-6, EN 60950 and UL 1585
| Power |
1.5VA |
| Primary Voltage |
230V |
| Secondary Voltage |
2 x 9V |
| Weight |
0.08kg |
