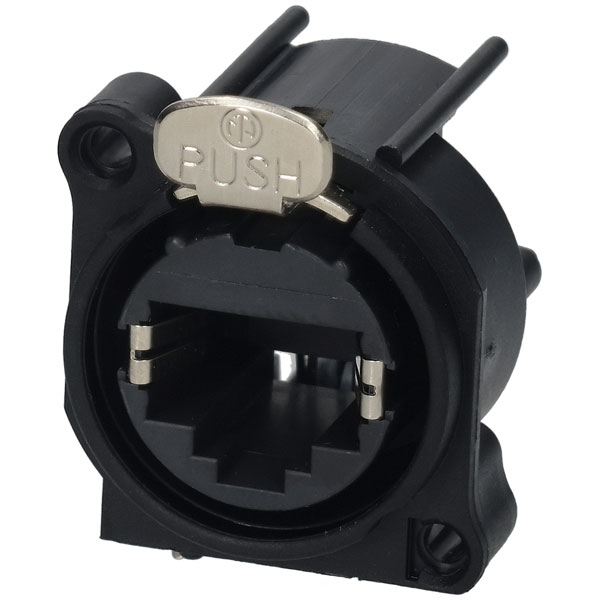

Neutrik NE8FAH Horizontal PCB Mount RJ45 Receptacle

This Neutrik NE8FAH Horizonal PCB mounting RJ45 socket connector, features an A-Series cutout with latch lock, used for panel mounting with panel thickness of 3mm (max.).

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardised panels for the entertainment industry.

The all-plastic A-Series offers the most space saving and cost effective design.

• Frequency Range: 1-100MHz
• Current rating: 1.5A
• Voltage rating: 50V
• Cable diameter: 8mm-10mm
• Mechanical Life: >1000 cycles
• Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
• Approved latch lock system
• Space saving design
• CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
• Isolated to panel ground
• PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Note: Not compatible with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Mounting Type	PCB right angle
Number of Ports	1
Plug / Socket	Socket
Type	RJ45
