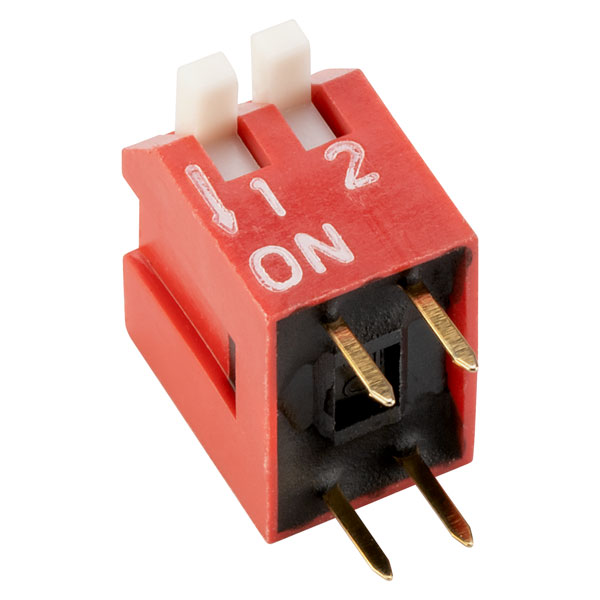

R-TECH 800029 DIL Switch, Piano Key 2-way 4-pin

Name: R-TECH 800029 DIL Switch, Piano Key 2-way 4-pin
Brand: R-TECH
Price: 0.957 GBP
Availability: InStock

Order Code:

80-0029

Copy to clipboard

( Write a review )

Brand: R-TECH Copy to clipboard MPN: 800029 Copy to clipboard EAN-13: 5053556006441

RoHS Compliant
Country of Origin: China
Free UK shipping available
View Full Product Range (9)

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£0.957
10+	£0.778
25+	£0.679
100+	£0.582
250+	£0.489
500+	£0.422

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

2,832 in Stock, despatched same dayAdditional quantity lead time 4 months

Product Details
Data Sheets
Quick Quote

The R-TECH 800029 DIL Switch, Piano Key 2-way 4-pin is suitable for a range of applications including computers, multi-device remote controls and communications equipment.

Ideal for multiple programming functions in computers, including selection of addresses and options on PCBs

Contact Configuration: SPST
Contact Material: Gold plated, copper alloy
Pitch: 2.54mm
Max. Current: 25mA
Max. Voltage: 24V DC
Operating Temperature: -40°C to 105°C
On/off status clearly marked on the switch (actuator down = ON)
Through Hole Mounting

Action	Contact switching
Contact Configuration	SPST
Illumination Colour(s)	N/A
Illumination Type	None
Max. Current	25mA
No. of Pins	4
No. of Ways	2
Pitch	2.54mm
Type	DIL switch, Through hole
