This product was placed on the market before 22nd of July 2019 and is compliant to 2011/65/EU and not 2015/863

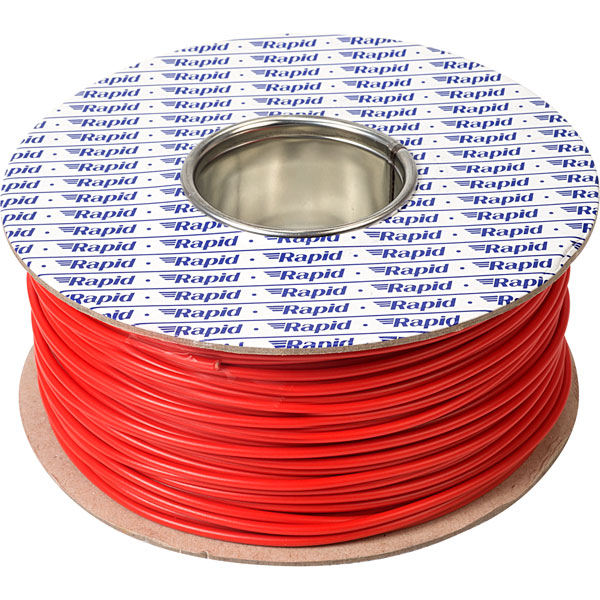

High quality red stranded equipment wire suitable for general use and connection within apparatus.
- Overall diameter 2.6mm
- 32/0.2mm (1.0mm²) tinned copper conductor
- Rating 1500V 6A at 70°C
- Current rating 10A
- Approved DEF61-12 (Part 6)
- Supplied on reels of 100m
| Conductor Stranding |
32/0.2mm |
| Insulation Material |
Polyvinyl chloride |
| Cable Diameter |
2.54mm |
| Colour |
Red |
| Conductor Cross-section |
1mm² |
| Length |
100m |
| Sold by Metre |
No |
| Standards/Test Marks |
DEF61-12, BS6746 |
