This product was placed on the market before 22nd of July 2019 and is compliant to 2011/65/EU and not 2015/863

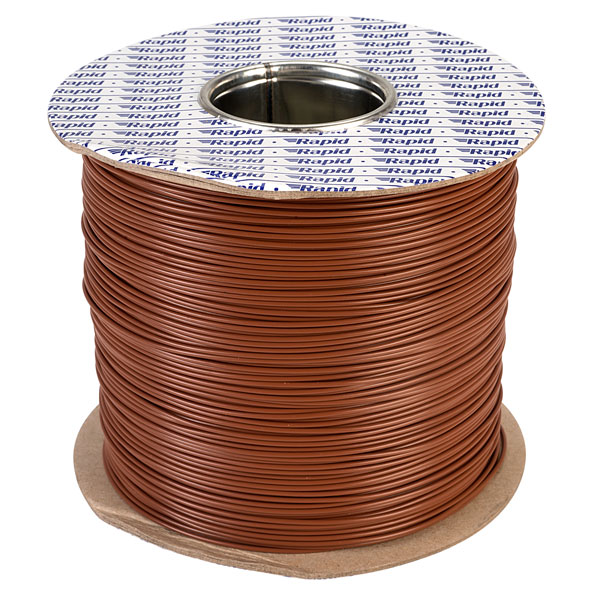

This high quality brown equipment wire has been produced to DEF61-12 (Part 6) defence standards for general use and interconnection within apparatus.
- 16/0.2mm (0.5mm²) tinned copper conductor
- Overall diameter 1.55mm
- Current rating 4A
- Rating 1kV 3A at 70°C
- Temperature range -10VC to +105°C
- Supplied on reels of 500m
| Cable Diameter |
1.55mm |
| Colour |
Brown |
| Conductor Cross-section |
0.5mm² |
| Conductor Stranding |
16/0.2mm |
| Insulation Material |
Polyvinyl chloride |
| Length |
500m |
| Sold by Metre |
No |
| Standards/Test Marks |
DEF61-12, BS4808 |
