Recom 10016299 R1SE-0505-R DC/DC Converter 5V In 5V Out

Name: Recom 10016299 R1SE-0505-R DC/DC Converter 5V In 5V Out
Brand: Recom
Price: 3.98 GBP
Availability: BackOrder

Standard range

Order Code:

49-6268

( Write a review )

Brand: Recom MPN: R1SE-0505-R

RoHS Compliant
Country of Origin: Taiwan
Free UK shipping available

Report an error

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£3.98
5+	£3.96
10+	£3.93

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

30 available to back orderBack-order availability date - 01/12/2024

Product Details
Data Sheets
Quick Quote

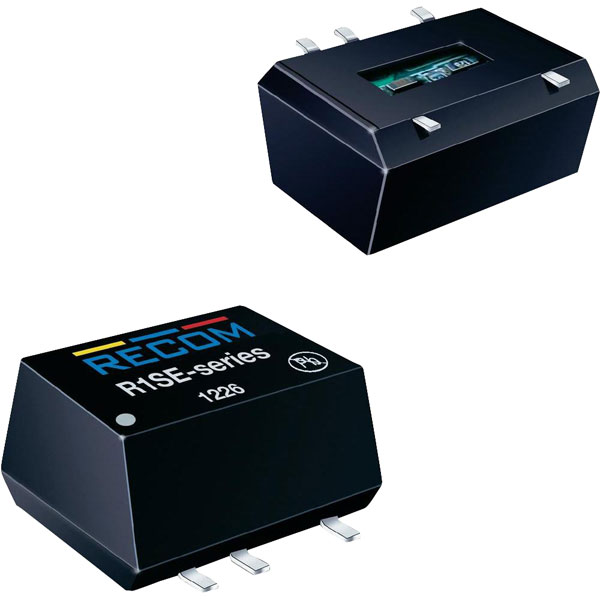

This RECOM Power R1SE 1W SMD DC/DC Converter is an unregulated isolated single output converter with efficiency up to 75%. The R1SE provides 5V DC output with 1:1 input range, 1kV DC isolation, and an operating temperature range of -40°C to +85°C.

1:1 Input range
SMD Package
Efficiency up to 75%
1kVDC Isolation
Operating Temperature from -40°C to +85°C
Dimensions: 12.75(L) x 10.7(W)
Type: 1W SMD DC/DC Converter
Manufacturer's part: R1SE-0505-R

Mounting Style	SMD
Number of Outputs	1
Output Current Max	200mA
Output Current Min	N/A
Output Voltage Max	5V
Output Voltage Min	N/A
Power Rating	1W
Supply Voltage Range	5V
Temperature Range	-40 to +85°C
