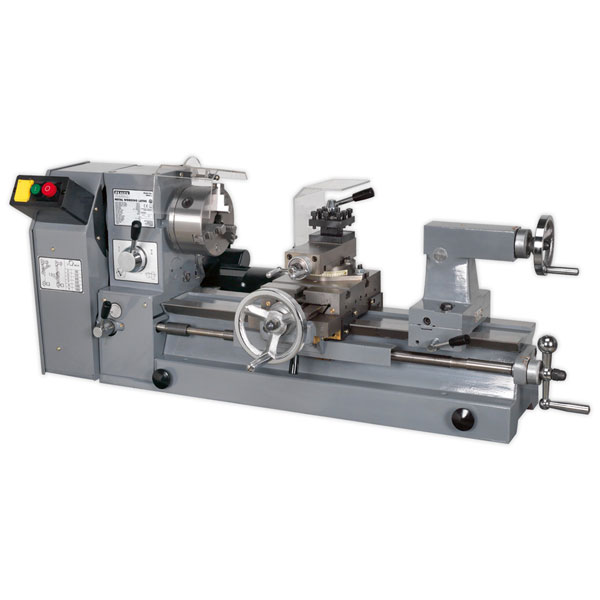

Sealey SM27 Metal Working Lathe 500mm Between Centres

Sealey SM27 Metal Working Lathe 500mm Between Centres

Order Code:

89-2785

Copy to clipboard

( Write a review )

Brand: Sealey Copy to clipboard MPN: SM27 Copy to clipboard EAN-13: 5024209645454

RoHS Compliant
Country of Origin: China
Not available for Export

Report an error

Discontinued

Product Details
Data Sheets

Quality workshop lathe suitable for a wide range of turning and drilling applications. Features power feed for even surface finish and thread cutting. Four-way tool post mounted on compound slide mechanism enables fast interchange of cutting tools with accurate feed. Powered by 550W motor through six-speed gearbox. Incorporates quiet running PTO gearbox with oil bath lubrication for power feed. Supplied with three-jaw chuck and dead centre. Fitted with no-load voltage release switch. Meets Supply of Machinery (Safety) Directives 1992 (and amendments). Workshop stand available as an optional extra - Model No. SM27ST.

Model No	SM27
Nett Weight:	132.90Kg
Centre Height Over Table:	150mm
Centre Height Over Saddle:	80mm
Distance Between Centres:	500mm
Spindle Bore:	Ø26mm
Speed Range:	160-1600rpm
Head Stock Taper:	MT4
Tail Stock Taper:	MT3
Tail Stock Travel:	40mm
Screw Cutting:
Metric Pitch Quantity:	14
Metric Pitch Range:	0.5-3mm
Inch Pitch Quantity:	20
Inch Pitch Range:	11-40tpi
Motor Power:	550W
Supply:	230V

Height	150mm
Length	500mm
Lifetime Warranty	No
Power	550W
Spindle Speed	160 to 1600rpm

Manual

Questions

*Question functionality currently disabled

04 September 2018 Question by: Rapid Customer | Product code: 89-2785

Q. Hi, What Diameter can the chuck hold? i am looking to turn 50mm Diameter bar

A. Hi Steve, thank you for your question. The spindle bore is 26mm.

15 July 2018 Question by: Rapid Customer | Product code: 89-2785

Q. what is maximum work diameter also is chuck hollow to allow long items fit through chuck body

A. Hi Keith, thank you for your question. Chuck capacity is 26mm (called splindle bore) in the manual and you can load your workpiece through the back of the lathe into the chuck.
