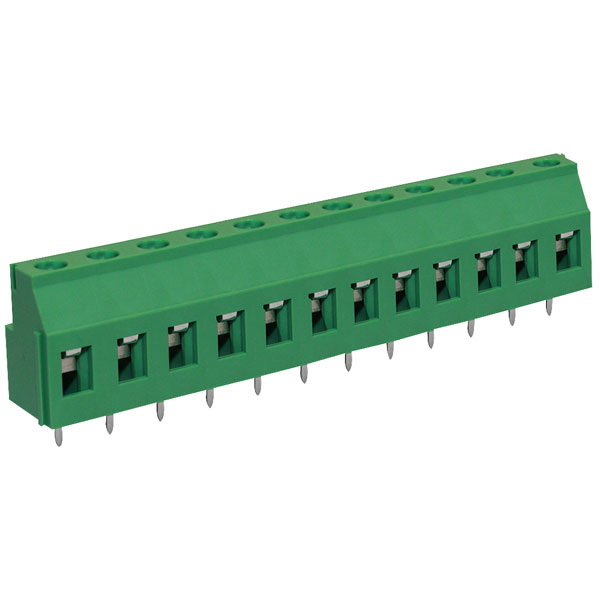

Camblock Plus CTBP07VK/12 7.5mm High Power Rising Clamp Terminal Block 12p

A 12 pole 7.5mm pitch high power professional vertical rising clamp terminal block designed for use on PCBs.

This connector is ideal for use in any installation and provides a versatile wire to board connection method. Additional features include a double interlock mechanism for increased strength, and guided pin alignment.

• High power
• 2 and 3 pole double interlocking
• 4 to 12 pole pre-assembled
• Rating 20A 300V (UL) / 24A 250V (VDE)
• Guided pin alignment
• Captive screws

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Current Rating	24A
Pitch	7.5mm
Wire Gauge	26 to 12AWG
Body Style	Interlocking
Mounting	PCB
Number of Ways	12
Series	CTBP07VK
Termination	Rising clamp
