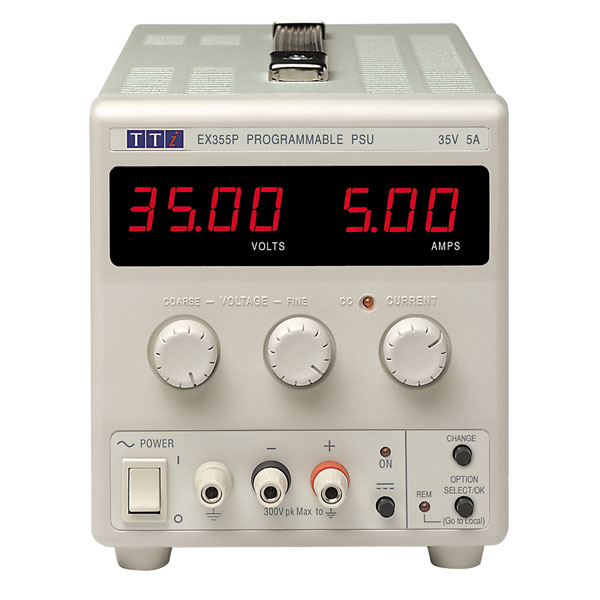

This high power compact single output switch mode PSU from the Aim-TTi EX series provides a high level of power at a very affordable price. By combining switch-mode pre-regulation with linear post-regulation, performance levels comparable to an all linear design have been achieved.
Power 175W
Output current 5A
Output voltage 35V
Compact design takes up minimal bench space
Quiet operation
Mixed-mode regulation
Excellent line and load regulation
Low noise
Good transient response
High power efficiency
Constant voltage and constant current modes with automatic crossover
Coarse and fine voltage control
Logarithmic current control enabling low currents to be accurately set
Separate digital voltmeter and ammeter for each main output
Current limit settings are displayed when output switch is off, enabling verification of settings
Bright LED display with 14mm high characters and an update rate of four per second
All outputs short circuit proof and fully protected against external voltages and reverse currents
Complies with EN61010-1 and EN61326
Features an RS-232 interface to give a basic programmable PSU
