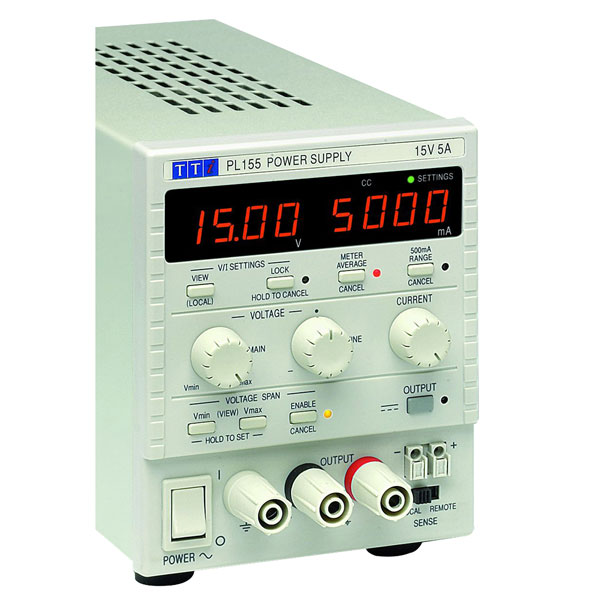

Aim-TTi PL155 Power Supply Single 0-15V/0-5A

Over the years, the PL series has been steadily revised and extended. Hundreds of thousands of PL series units are currently in use across the world and it remains the laboratory power supply of choice for many organisations.

The Aim-TTi Single PL155 achieves an exceptional power density for a linear regulated power supply by offering up to 90W from a ¼ rack 3U sized casing.

This gives it an unusually small bench footprint taking up less space on a crowded bench. For rack-mount application, up to four units can be mounted into a single slot. Despite its small size and linear regulation, the Aim-TTi Single PL155 generates relatively little heat through the use of an advanced phase controlled pre-regulator.

This gives it significantly higher energy efficiency than conventional linear regulated designs, particularly when supplying lower voltages.
The internal heat-sinks use fan-assisted convection cooling in order to remove the heat with minimal fan noise.

• Single output or dual output models
• Linear regulation - for the best performance
• Ultra-compact design - uses up less space
• True Analog controls - for ease of use
• S-Lock function - instantly lock settings
• V-Span function - customise the voltage range
• Low current range and current meter averaging
• DC output switches and view limits button
• Selectable remote sense terminals
• Independent, Isolated Tracking, Ratio Tracking and True Parallel modes on dual output model
• Manufacturers part no. Aim-TTi EB2025T

Not recommended for use as a battery charger.
