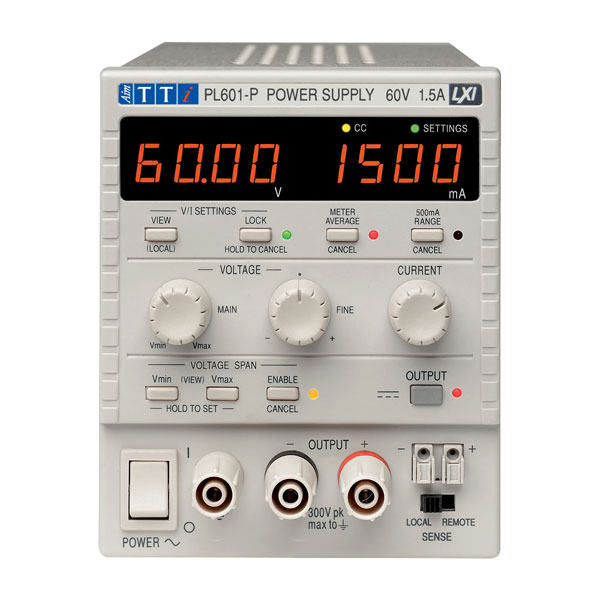

The Aim-TTi PL601-P(G) achieves an exceptional power density for a
linear regulated power supply by offering up to 90W from a ¼ rack 3U sized
casing. This gives it an unusually small bench footprint taking up less space on
a crowded bench. For rack-mount application, up to four units can be mounted
into a single slot. This version is supplied with the GPIB interface.
Despite its small size and linear regulation, the Aim-TTi PL601-P(G) generates relatively little heat through the use of an advanced phase controlled pre-regulator. This gives it significantly higher energy efficiency than conventional linear regulated designs, particularly when supplying lower voltages.
The internal heat-sinks use fan-assisted convection cooling in order to remove the heat with minimal fan noise.
To meet the varying needs of todays engineers, the Aim-TTi PL601-P(G) has a comprehensive array of interfaces is provided. RS-232, USB and LAN (Ethernet) with LXI and GPIB support are provided as standard.
Each of the digital bus interfaces provides full control of voltage, current, and output on/off, plus read-back of voltage, current and status. The interfaces are at ground potential and are opto-isolated from the output terminals.
Not recommended for use as a battery charger.
Number of Outputs | 1 |
---|---|
Output Current Max. | 1.5A |
Output Current Min. | 0A |
Output Voltage Max. | 60V |
Output Voltage Min. | 0V |
Power Rating | 90W |
Supply Voltage Range | 115 / 230V |
Temperature Range | +5 to +40°C |
