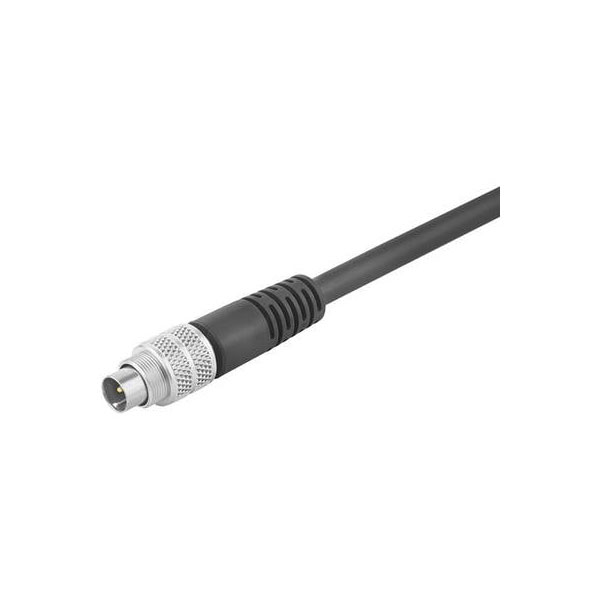

Image Representative of Range
Binder 79-1409-12-04 Male 4 Pin with Shielded Moulded Terminal and 2m Cable
Standard range
Order Code:
Brand:
Binder
MPN: 79-1409-12-04 55-0722
- RoHS Compliant
- Country of Origin: Germany
- Free UK shipping available
- View Full Product Range (3)
| Qty | Unit Price (Ex VAT) |
|---|---|
| 1+ | £24.56 |
Price per unit Ex VAT
A 4-pin male IP67 subminiature cable mount M9 screw connector with shielded, moulded terminals and 2m cable.
- Number of poles: 4
- Connector locking system: Screw
- Termination: moulded on cable
- Wire gauge (mm): 0,25 mm²
- Wire gauge (AWG): 24
- Cable lenth: 2 m
- Degree of protection: IP 67
- Mechanical operation: >500 mating cycles
- Upper temperature: +70 °C
- Lower temperature: -25 °C
- Rated voltage: 125 V
- Rated impulse voltage: 1500 V
- Pollution degree: 1
- Overvoltage category: II
- Material group: III
- Rated current (40°C): 3 A
- Volume resistivity: ≤ 3 mΩ
- Material of contact: CuZn (brass)
- Contact plating: Au (gold)
- Material of contact body: PBT (UL 94 V-0)
- Material of housing: PUR
- material housing: PUR
- insulation single lead: PVC
- single lead structure: 14 x 0,15 mm
- cable sheath Ø: 5.3
- conductor resistance: 75Ω/Km
- bending radius cable fixed: Min. 53 mm
- bending radius cable movable: Min. 80 mm
- cable diameter: 5.3
| Contact Finish | Gold plated |
|---|---|
| Contact Termination | Moulded cable |
| Pin/Socket | Pin |
| Type | Shielded, Moulded Cable |
