BKL 10120539 Male Header Double Row 2.54mm Pitch Angled 2 x 20-pole

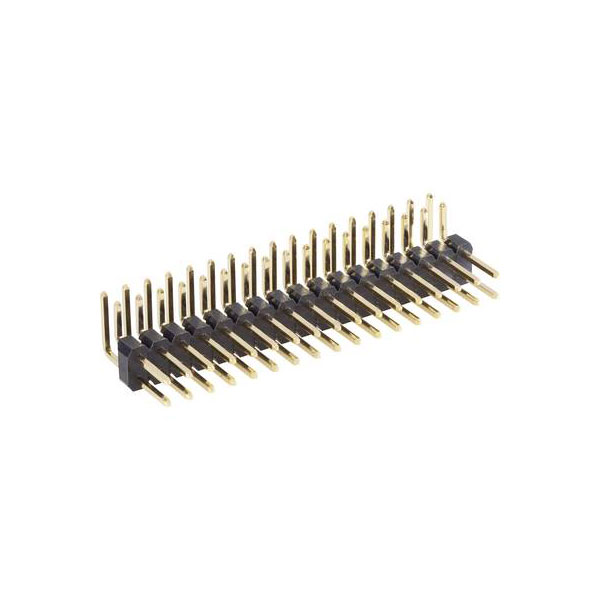

Image Representative of Range

BKL 10120539 Male Header Double Row 2.54mm Pitch Angled 2 x 20-pole

Standard range
Order Code:

54-5056

  Copy to clipboard
( Write a review )
Brand: BKL  Copy to clipboard MPN: 10120539 Copy to clipboard PCB Symbol, Footprint or 3D Model
 Report an error
Qty Unit Price (Ex VAT)
5+ £1.19
10+ £1.05
50+ £0.890

Add to Quote
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
Standard factory lead time 7 days
167 available to back orderBack-order availability date - 06/11/2024

BKL Electronics 10120539 These pin headers are suitable for use with female headers, or housings. For direct soldering on PCBs. Gold plated contacts. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.


  • Gold-plated
  • Contact material: Gold plated
  • Contact resistance: Max 20 mΩ
  • Content: 1 pc
  • Dimensions, height: 8.3mm
  • Dimensions, length: 50.8mm
  • Dimensions, width: 12.58mm
  • Grid pitch: 2.54mm
  • Manufacturer part No.: 10120539
  • Nominal current: 3A
Pitch 2.54mm
Connection Through hole
Number of Pins 20
Number of Rows 2
Orientation Right angle
Type Header
