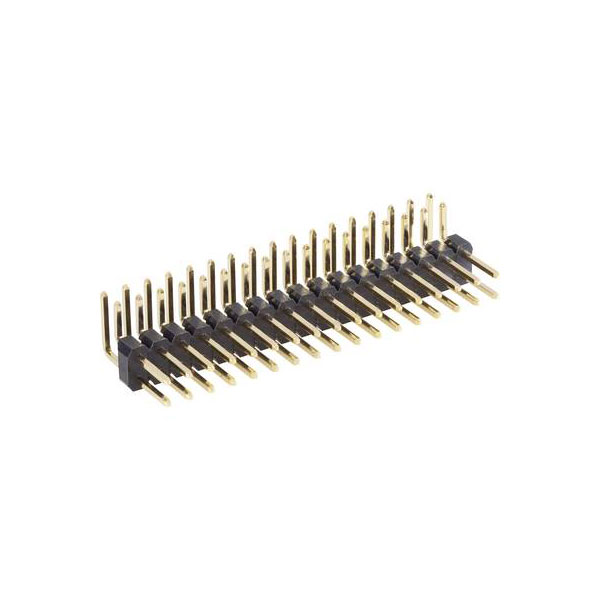

BKL 10120541 Male Header Double Row 2.54mm Pitch Angled 2 x 25-pole
Image Representative of Range

BKL 10120541 Male Header Double Row 2.54mm Pitch Angled 2 x 25-pole

BKL
Standard range
Order Code:

54-5057

Brand: BKL MPN: 10120541 EAN-13: 4011376702395
Qty Unit Price (Ex VAT)
5+ £0.830
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 5
42 available to back orderBack-order availability date - 12/02/2025

BKL Electronics 10120541 These pin headers are suitable for use with female headers, or housings. For direct soldering on PCBs. Gold plated contacts. The insulation is notched between each pin making it easy to cut the strips into intermediate lengths.


  • Gold-plated
  • Contact material: Gold plated
  • Contact resistance: Max 20 mΩ
  • Content: 1 pc
  • Dimensions, height: 8.3mm
  • Dimensions, length: 63.5mm
  • Dimensions, width: 12.58mm
  • Grid pitch: 2.54mm
  • Manufacturer part No.: 10120541
  • Nominal current: 3A
