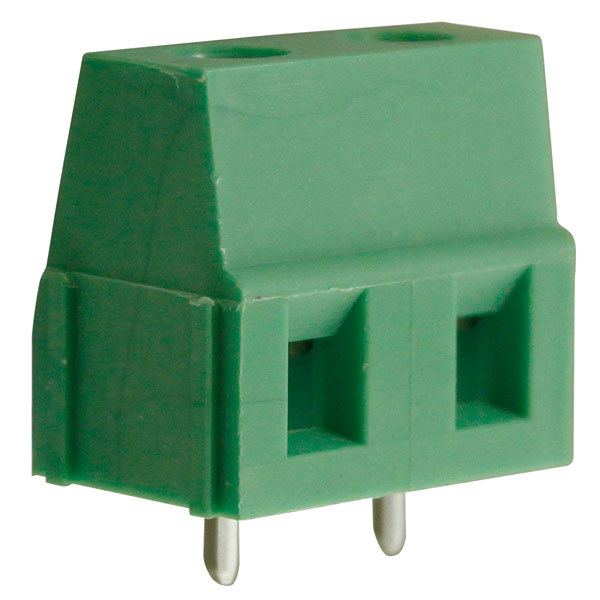

This 2-pole standard profile rising clamp terminal block is part of the CamBlock Plus range from CamdenBoss. These green blocks are made from flame retardant polyamide.
Double interlocking mechanism for increased strength
Moulded in UL94-V0 flame-retardant PA66
Professional rising clamp terminals
Guided pin alignment
Wire capacity 2.5mm² (22 to 12AWG)
Pitch 7.5mm
Current rating 16A UL, 20A VDE
Length 15mm
Width 10.3mm
Height 14.1mm
Manufacturer's part CTBP011/2
Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.
