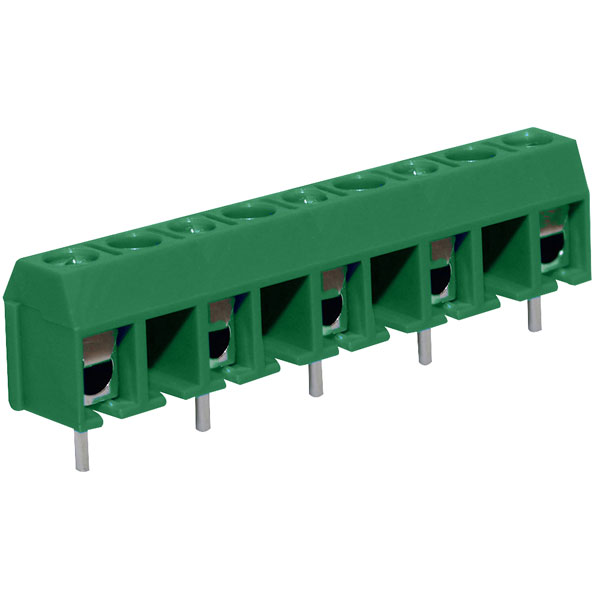

Camblock Plus CTBP6000/5 10mm Low Profile Wire Protector Terminal Block 5p

A 5 pole 10mm pitch wire protector terminal block designed for use on PCBs.

This low profile connector is ideal for use in any installation and provides a versatile wire to board connection method.

• Wire protector terminals
• Interlocking mechanism
• Rating 16A 250V
• Captive screws
• Guided pin alignment
• Anti solder wicking terminals

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Colour	Green
Current Rating	16A
Mounting Direction	Vertical
Mounting Type	Through Hole
No. of Ways	5
Pitch	10mm
Wire Gauge	2mm²
Wire Gauge (AWG)	22 to 14AWG
Wire Termination	Screw, Wire Protector
