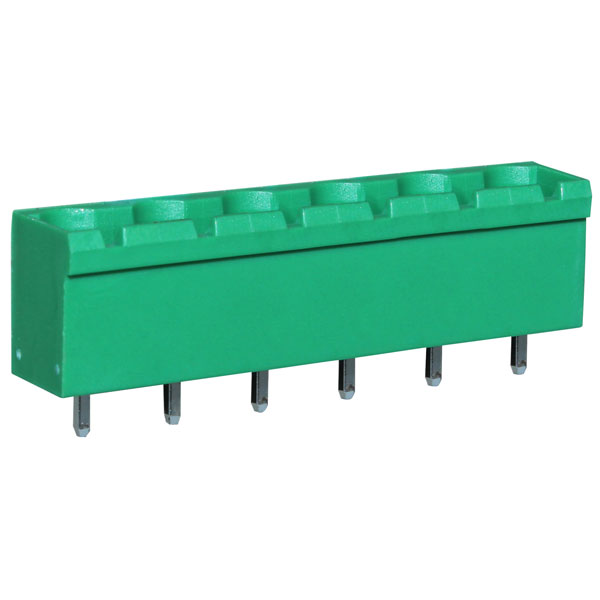

CamBlock Plus CTBP9508/6 7.62mm Pitch Vertical Male Header Closed Ends 6 Pole

Pluggable 6-pole male vertical terminal block with closed ends from the CamBlock Plus range by CamdenBoss. These green blocks are made from flame retardant polyamide.

• Moulded in UL94-V0 flame-retardant PA66
• Polarised moulding
• Anti-solder wicking
• Guided pin alignment
• Captive screws
• Wire capacity 1.5mm² (28 to 14AWG)
• Pitch 7.62mm
• Current rating 15A UL, 20A VDE
• Length 45.7mm
• Width 7.8mm
• Height 12mm
• Manufacturer's part CTBP9508/6

Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.

Current Rating	15A
Pitch	7.62mm
Wire Gauge	14AWG
Body Style	Closed header
Mounting	PCB
Number of Ways	6
Series	CTBP
Termination	Pluggable
