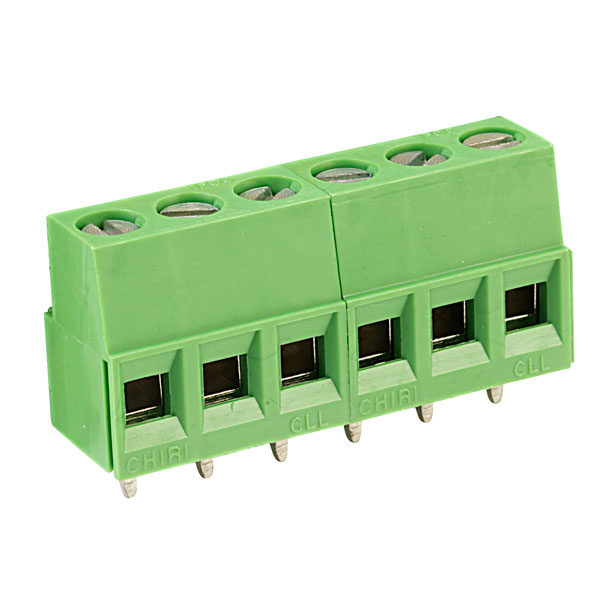

Standard Profile terminal block, 6 poles, 5mm pitch, part of the Camden Boss CTB0100 Series.
24A current rating, 250V voltage rating
Rising clamp termination
PCB mounting, 1 row
2.5mm² wire size
Nickel plated brass contact material
Polyamide 66 housing material, green colour
UL94-V0 flame retardant moulding
Guided pin alignment
M3 steel captive screws
UL, VDE and CE approved
Manufacturer's part CTB0100/6
Rapid is an official distributor of CamdenBoss products. The products listed here are those that Rapid hold in stock – but we have access to many more, including the company's complete range of terminal blocks. Click here to make an enquiry about ordering CamdenBoss terminal blocks, connectors and enclosures.
