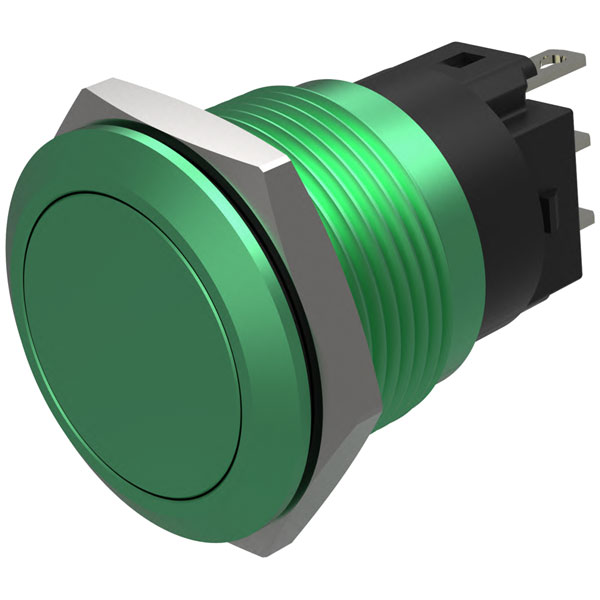

EAO Pushbutton Momentary 22mm Green Flush no LED Solder Terminals - manufacturers part number 82-6851.1000.1293. EAO push button switches control the action in a piece of machinery or a particular process. Commonly used within the workplace and home, push button switches are usually constructed from metal or plastic, which should be a consideration when you are choosing a product for your specific application.
- Mounting cut-out Ø 22 mm
- Terminal Soldering terminal, 2.8 x 0.5 mm
- Operating Travel ca. 3 mm
- Lens illumination non illuminative
- Lens colour Green
- Lens shape flush
- Lens material Aluminium
- Lens optics opaque
- Front bezel colour Green
- Front bezel shape flush
- Front bezel material Aluminium
- Weight 0.018 kg
- Contact material Silver
- Switching action Momentary
- Switching system Snap-action switching element
- Contacts 1 C
- Operating temperature – 30 °C … + 70 °C
- Approbations CB, CCC, C UL, UL
- Operating force 4 … 7 N
- Climate resistance Damp heat, 21 days according to IEC 60512-11
- Mechanical lifetime 1 Mio. cycles of operation
- Tightening torque Fixing nut 0.5 Nm min. ... 1.2 Nm max.
| Type |
Push-button |
| Action |
Momentary |
| Contact Configuration |
1C |
| Illumination Colour(s) |
N/A |
| Illumination Type |
N/A |
