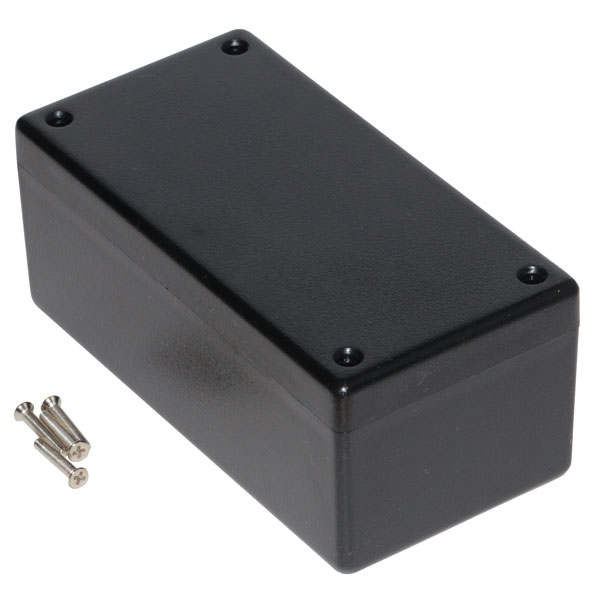

Rugged electronic instrument enclosure from Hammond, made from black ABS material, 3.3mm thick, ideal for mounting printed circuit boards.
131mm length, 66mm width, 55mm height IP54 IP rating Moulded from heavy duty flame retardant ABS plastic (carries a UL flammability rating of 94V-0). Countersunk lid is secured with four M3x0.5-0.71in (18mm) long Phillips machine screws threaded into integral brass bushings Perfect for applications when repetitive assembly and disassembly is required Hammond part 1594DBK
Colour
Black
Enclosure Height
43mm
Enclosure Length
131mm
Enclosure Width
66mm
External Features
N/A
Internal Features
N/A
Material
ABS
Finish
N/A
Flame Resistance
UL94-V0
IP Rating
IP54
Series
1594
Type
Heavy duty enclosure
Order Code: {{product.ProductCode}}
Your Ref: {{product.CustomerCode}}
MPN: {{product.ManuPartNo}}
{{attribute.Name}} : {{decodeHtml(attribute.Value)}}
ROHS : Compliant
