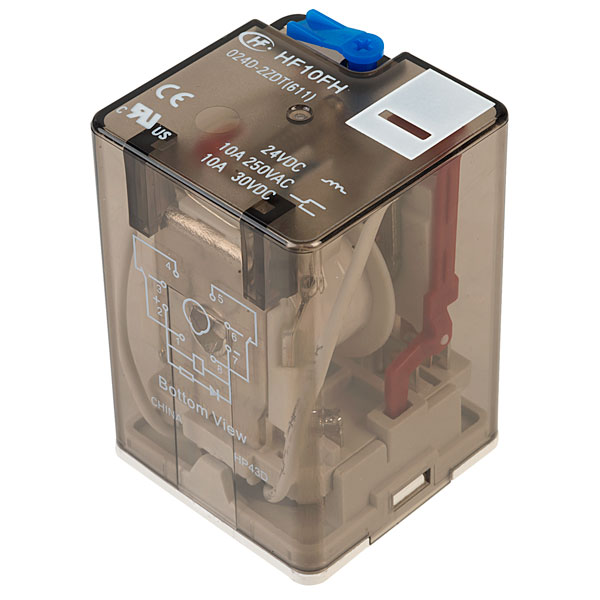

This 10A 24V DC plug-in power relay is a robust device that has high electrical and mechanical endurance. Features include silver alloy contacts and a lockable push to test button.
DC Coil
2-Pole changeover configuration
Industry standard 8-pin termination
Flag indicator and LED built-in
Dust protection
2.5kV Dielectric strength
UL and cUR approvals
Coil Resistance
430Ω
Coil Voltage (DC)
24V
Contact Configuration
DPCO
Height
55mm
Length
35.5mm
Mounting Type
Socket
Operating Temperature
-40 to +55°C
Rated Current
10A
Rated Voltage (AC)
250V
Rated Voltage (DC)
30V
Switching Power
300W
Width
35.5mm
