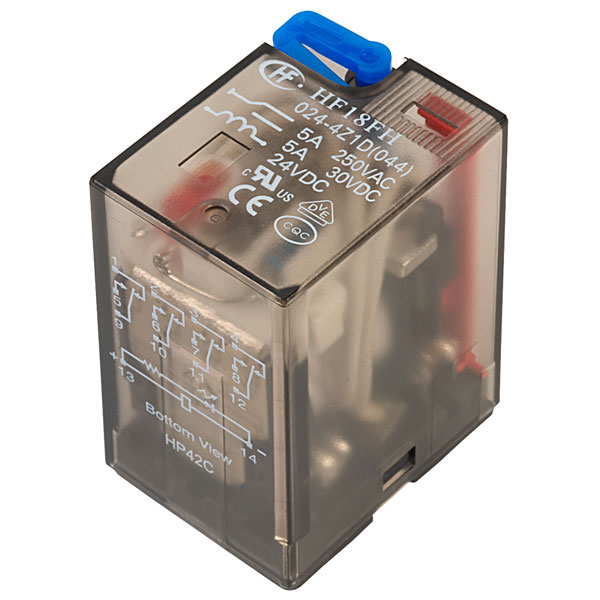

A 24V DC 6A plug-in power relays with 4-pole changeover contacts. The relays have a 14-pin mounting configuration and feature silver alloy contacts and a lockable push to test button.
Flag indicator and LED built-in
Dust protection
1.5kV Dielectric strength
UL/cUR, TÜV, CQC approvals
Coil Resistance
650Ω
Coil Voltage (DC)
24V
Contact Configuration
4PCO
Height
36mm
Length
28mm
Mounting Type
Socket
Operating Temperature
-40 to +70°C
Rated Current
6A
Rated Voltage (AC)
250V
Rated Voltage (DC)
30V
Switching Power
150W
Width
21.5mm
Order Code: {{product.ProductCode}}
Your Ref: {{product.CustomerCode}}
MPN: {{product.ManuPartNo}}
{{attribute.Name}} : {{decodeHtml(attribute.Value)}}
ROHS : Compliant
ROHS : Exempt
ROHS : Non Compliant
