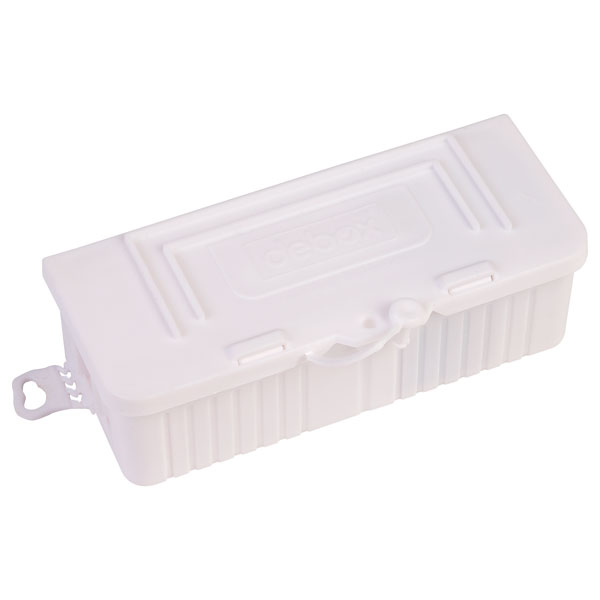

The Hylec Debox SL2 is the smallest five-pole 32A junction box on the market and the only product supplied complete with 5 screwless lever-operated terminal blocks. Each individual lever connector can take up to three conductors.
Debox SL2 saves valuable time by making installation easier for both small and large internal wiring jobs, as everything you need is in the box and no tools are needed to join the wires or securely close the box.
The lever operated terminal blocks provide a better connection than push-fit terminals and are suitable for use with round or flat cables and with 2 core or 3 core cables like flat twin-and-earth cable. Debox SL2 is suitable for use in commercial or domestic wiring applications including lighting.
- 100% tool-free assembly
- Terminal blocks: 5x 3-pole, lever operated
- Current rating: 32A
- For cable sizes: 0.5 to 2.5mm²
- Flame retardant to UL94 V0
- Complete with tool-less locking clip & spare locking clip
- Width: 47mm
- Height: 35mm
- Length: 107mm
- Conforms to EN60598-1 (Glow wire test 650°C) and EN60670-22 (Pull Test)
- Material: polypropylene
- Hylec type DEKSB-004/5
| Colour |
White |
| Enclosure Height |
35mm |
| Enclosure Length |
107mm |
| Enclosure Width |
47mm |
| External Features |
Locking clip |
| Protection Rating |
IP20 |
| Internal Features |
Terminal block |
| Material |
Polypropylene |
