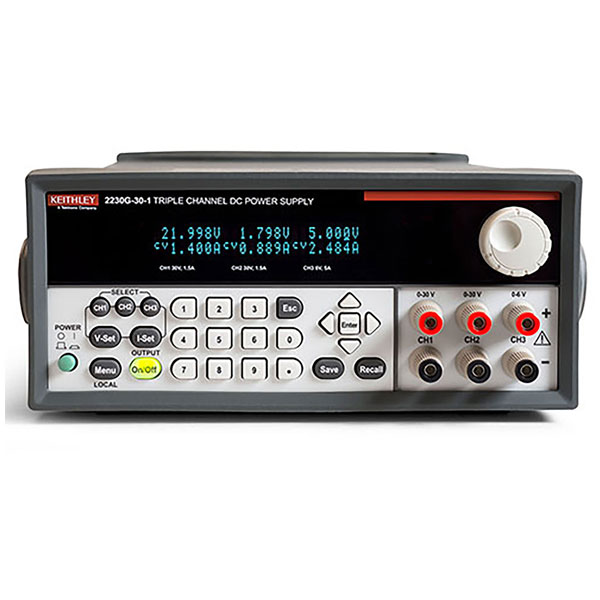

Keithley 2230-30-1 Programmable Triple Channel DC Power Supply

Extended range
Order Code:

59-2808

  Copy to clipboard
Brand: Keithley  Copy to clipboard MPN: 2230-30-1 Copy to clipboard EAN-13: 4016138801118
 Report an error
Qty Unit Price (Ex VAT)
1+ £1380.00

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Standard factory lead time 9 weeksContact us for lead times on larger quantities
Available to back orderBack-order availability date - 25/12/2024

The Keithley Series 2200 offers DC power supply models with voltage outputs from 20V to 72V to address a wide range of power requirements.

These supplies have both front and rear outputs for use on a bench or in a test system. With basic voltage setting accuracy of 0.03% and basic voltage readback accuracy of 0.02%, the voltage you program for the load is the voltage accurately applied at the output terminals.

The rear panel connections include remote sense terminals that compensate for voltage drops in the power supply leads.

Applications include advanced teaching labs, and research and development labs.


  • Manufacturers Model Number
2230-30-1
  • Max Voltage
30V
  • Maximum Current
1.5A
  • Connectivity
USB
  • Number of Outputs
3

Product Features Include:

  • All channels are isolated and programmable
  • High programming accuracy
  • Remote sense for all output channels
  • Fully supported in TekSmartLab™ student lab software
  • KickStart Software support


Number of Outputs 3
Output Current Max. 1.5A
Output Current Min. 0.0001A
Output Voltage Max. 30V
Output Voltage Min. 0.1V
Power Rating 45W
Programmable? Yes
Range Series 2200
Supply Voltage Range 110 to 240V
Temperature Range 0 to +40°C
Type Programmable Power Supply
