The Keithley series 2281S Battery Simulator and Precision DC Power Supply combines battery simulation with the functions of a high-precision power supply. The 2281S-20-6 can analyze the DC current consumption of a device under test and generate a battery model based on a battery charging process, and simulate a battery based on a battery model. The 2281S-20-6 can output 120W with 20V and 6A, and sink current up to 1A.
The 2281S uses linear regulation to ensure low-output noise and superior load current measurement sensitivity. A high resolution colour thin film transistor (TFT) screen displays a wide range of information on measurements. Soft-key buttons and a navigation wheel combine with the TFT display to provide an easy-to-navigate user interface for fast setup and operation.
In addition, built-in plotting functions allow monitoring trends such as drift. These features provide the flexibility required for both bench-top and automated test system applications. In addition, the 2281S provides a list mode, triggers, and other speed optimization functions to minimize test time in automated testing applications.
- Simulate a battery's output during charge and discharge cycles
- Create, edit, import and export battery models
- Build a library of battery models using a Source Measure instrument as a model generator
- Display the real-time change of the SOC, Voc, and Vt for the simulated battery
- Compute battery capacity in Amp-Hour and Equivalent Series Resistance (ESR)
- Program the battery SOC, Voc, capacity, and internal resistance (ESR)
- Provide two modes of simulation: dynamic and static
- Monitor charge/discharge current and voltage
- Output up to 120W of low noise, linear regulated power
- Monitor load currents from 100nA to 6A with high accuracy in power supply mode
- Measure voltage and current with 6½-digit resolution
- Sink current up to 1A and source current up to 6A
- Built-in graphing simplifies analyzing trends or displaying voltage or current waveforms
- High resolution TFT display and soft-key/icon-based user interface simplify operation
- Digital I/O for direct communication with other devices and instruments
- GPIB, USB, and LAN interfaces
- Emulation of front panel display and controls via your web browser simplifies automated control and monitoring
- Supplied with Quick Start guide, KickStart Quick Start guide, LAN crossover cable, power cord, rear panel mating connector with cover

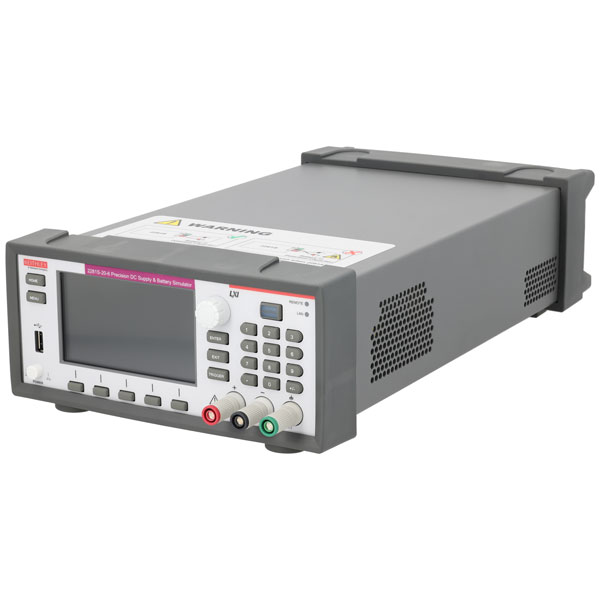

- Keithley type 2281S-20-6
| Number of Outputs |
1 |
| Output Current Max. |
6A |
| Output Current Min. |
0A |
| Output Voltage Max. |
20V |
| Output Voltage Min. |
0V |
| Power Rating |
120W |
| Supply Voltage Range |
100 to 240V |
| Temperature Range |
0 to +40°C |
