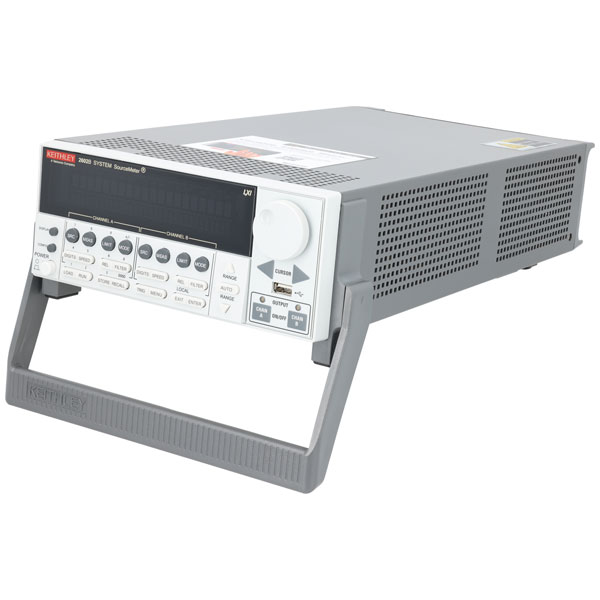

Keithley 2602B System Sourcemeter SMU - Dual Channel, 40V

Extended range
Order Code:

85-1801

  Copy to clipboard
Brand: Keithley  Copy to clipboard MPN: 2602B Copy to clipboard EAN-13: 4053199921416
 Report an error
Qty Unit Price (Ex VAT)
1+ £12400.00

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Standard factory lead time 9 weeksContact us for lead times on larger quantities
Available to back orderBack-order availability date - 25/12/2024

Keithley's 2600B Series Source Measurement Units (SMU) are the industry standard current-voltage source and measurement solution for highly automated production test applications.

Both dual and single-channel models tightly integrate a precision power supply, true current source, digital multimeter (DMM), and an electronic load with pulse generating capabilities.


Keithley 2602B Dual-channel System SourceMeter SMU (3 A DC, 10 A Pulse) Product Features:

  • 4-quadrant voltage/current source and measure with 6 digit resolution (2-line VFD display).
  • Dual channel.
  • Built-in web browser based software enables remote control through any browser, on any computer, from anywhere in the world.
  • Compatibility with the Keithley IVy mobile app enables true plug & play I/V characterization and test through any Android device.
  • TSP (Test Script Processing) technology embeds complete test programs for best-in-class system-level throughput.
  • USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces.
  • Software emulation for Keithley's Model 2400 SourceMeter SMU product.
  • Software drivers and development/debug tools supplied.

  • Source ±DC voltage from 5 μV to 40.4 V
  • Source ±DC current from 100 pA to 3.03 A
  • Source ±pulse current up to 10 A
  • Measure ±pulse current up to 10 A
  • Measure ±DC voltage from 100 nV to 40.8 V
  • Measure ±DC current from 100 fA to 3.06 A

  • What is a Source Measurement Unit (SMU)?


    Height 89mm
    Length 460mm
    Number of Outputs 2
    Output Current Max. 80W
    Output Current Min. 0.1W
    Power Rating 60W
    Resistance Measurement Range 500 nΩ to 40 TΩ
    Series 2600
    Supply Current Range 100nA to 10A
    Supply Voltage Range 100mv to 40V
    Temperature Range 0 to +50°
    Type Sourcemeter
    Weight 5.5kg
    Width 213mm
