Labfacility MD-ISK-S15-150-P5 K Thermocouples Min Ins 1.5x150

Extended range
Order Code:

61-1240

  Copy to clipboard
Brand: Labfacility  Copy to clipboard MPN: MD-ISK-S15-150-P5 Copy to clipboard
 Report an error
Qty Unit Price (Ex VAT)
1+ £22.19
5+ £20.17
25+ £17.73
100+ £16.13

Add to Quote

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Standard factory lead time 8 weeksContact us for lead times on larger quantities
Available to back orderBack-order availability date - 20/12/2024

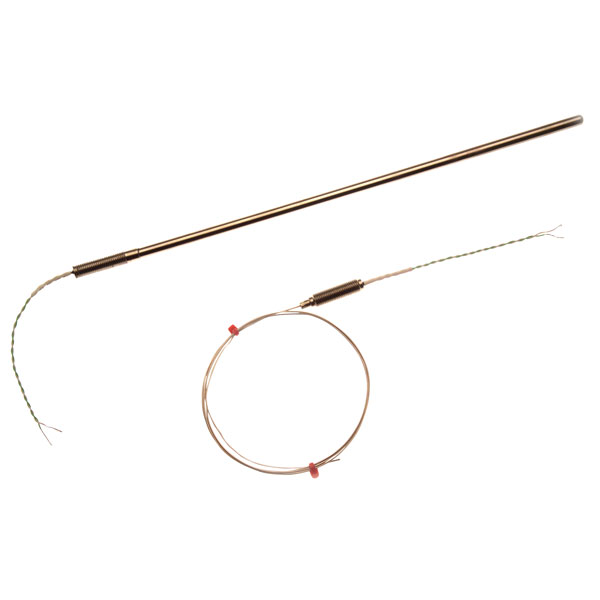

A Ø1.5 X 150mm type K thermocouple with flexible mineral insulation. The probe is housed in a 310 stainless steel sheath with M8 x 1.0mm fine pitch threaded pot seal and tails. The single element junction is insulated from the sheath, protecting against spurious electrical signals.

the highly flexible sheath can be bent and formed to suit particular applications and processes, making this thermocouple suitable for a wide range of uses, including brick and cement kilns, glass industry, heat treatment and annealing furnaces, power stations, flues, heat exchangers, etc.


  • Temperature range –40°C to +1100°C
  • Insulated hot junction
  • Excellent mechanical strength
  • Mineral insulation provides protection against oxidisation, corrosion and contamination
  • Fast thermal response
  • 310 stainless steel sheath
  • M8 x 1.0 threaded pot (max. temp +200°C)
  • Tails 100mm, PFA insulated twin twisted, 7/0.2mm
  • Colour coded to IEC 584
Probe Temperature Range -40 to +1100°C
Termination Tails
Type Type K thermocouple
