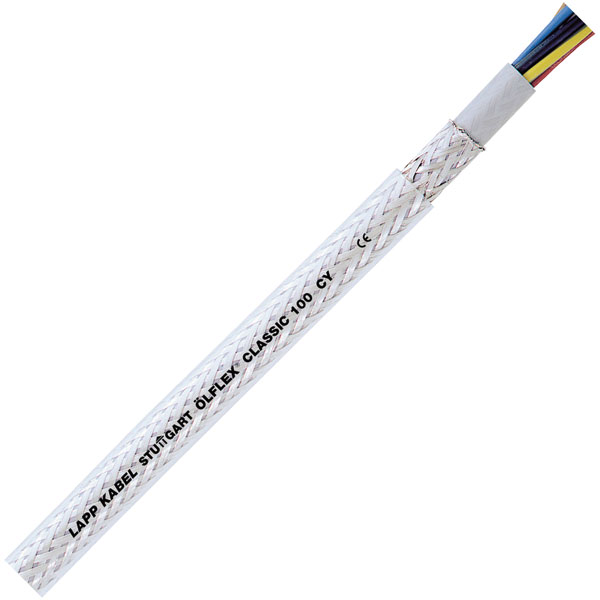

This colour-coded transparent-sheathed control data cable from LappKabel offers high electrical performance and increased flexibility thanks to short-twisted conductory layers. Suitable for installation where space is at a premium due to small cable diameters.
- Colour-coded
- EMC-conforming
- Bend radius (no. of ODs for fixed installation): 6
- Bend radius (no. of ODs for flexible installation): 20
- Cable features: Shielded, Flexible
- Cable Type: ÖLFLEX® CLASSIC 100 CY Control wiring
- Colour: Transparent
- Core layout: Finely stranded according to VDE 0295, Class 5/IEC 60228 Class 5
- Cross section 2 x 0.75mm²
- Max. temperature range (fixed installation): +80°C
- Max. temperature range (flexible installation): +70°C
- Min. temperature range (fixed installation): -40°C
- Min. temperature range (flexible installation): -5°C
- No. of leads 2
- Nominal voltage: 500V
- Nominal voltage U0: 300V
- Outside diameter: 7.4mm
- Sold per metre: Yes
- Standards: IEC 60227-5; HD 21.5 S3; VDE 0281 Part 5 HD 21.13 S1; VDE 0281 Part 13
- Test voltage: 4kV
- Wire ID code: Coloured according to VDE 0293 or VDE 0293-308
- Manufacturer's part 0035004
This cable will be supplied in one continuous length, subject to the maximum reel size. For example, an order for 7 metres of cable will result in a single 7-metre cable being supplied, not 7 one-metre lengths.
| Cable Diameter |
7.4mm |
| Colour |
Transparent |
| Conductor Cross-section |
2 x 0.75mm² |
| Insulation Material |
PVC |
| No. of Cores |
2 |
| Sold by Metre |
Yes |
