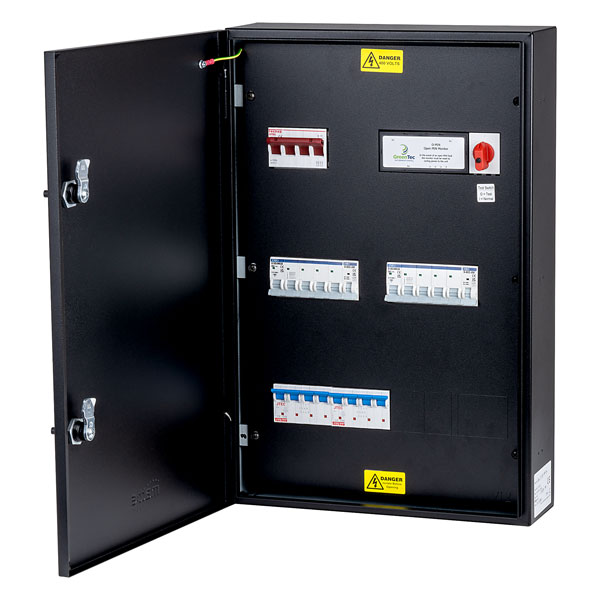

The EVU-2-32-TP-M from matt:E is simple single dedicated connection unit with built in O-PEN technology, which allows for the connection of 2x 32A TPN EV charge points to the existing PME earthing facility.
The unit incorporates a 5 pole isolator with built-in under-voltage release which disconnects all poles including CPC in the event of a fault, manually resettable in line with BS: 7671, 2018 Amendment 1 2020 Regulation 722.411.4.1 (iii)
The O-PEN technology does not require earth rods or measuring electrodes to function correctly.
| Product Description | Matt:E Three Phase 32A MCB Connection Unit for 2x 32A Charge Points |
| Replenishh Order Code: | 65-4073 |
| Supplier Code: | EVU-2-32-TP-M |
| Product Type: | Three Phase Connection Unit for Charge Points |
| Incoming Supply Rating | 32A per Charge Point |
| MCB Included | Yes |
| RCBO/RCCB Included | No |
| Max Terminal Entry | Input: 50mm², Output: 25mm² |
| Warranty: | 1 year |
| Colour | Black |
| Weight | Approx. 12kg |
| Dimensions (H x W x D) | 550 x 360 x 140mm |
| Voltage Rating | 400V, three-phase |
| Frequency | 50Hz |
| Material | Mild steel, powder-coated |
| IP Rating | IP4X (indoor) |
| Number of ways | 2 |
- Features:
- Connection unit for 2x 32A charge points
- Built in O-PEN technology
- No Earth electrodes required
- Phase-loss protection
- Built in 5-pole mains isolator with manual reset
- Simple wire-in, wire-out connection
- 2x 32A TPN MCBs
- Designed and built in the UK
| Auto Reset Function |
No |
| Build Type |
Pre-configured connection centre |
| Incoming Supply Rating |
125A |
| IP Rating |
IP4X (Indoor) |
| Load Curtailment |
No |
| Main Incoming Supply |
3-phase (415V) |
| Protection Included |
MCB only |
