The SP-EVCP-RC60-W from Matt:E incorporates a unique monitoring device that disconnects all poles including CPC in the event of a broken Neutral fault in line with Regulation 722.411.4.1(iv) and has the additional functionality for load curtailment in line with Regulation 722.311.20, isolating the charge point from the supply once the house consumption rises above the pre-set limit and automatically restores the power to the charge point when the load falls back within satisfactory level.
Creates a simple single connection centre that allows for connection to the existing PME earthing facility without the use of Earth electrodes, saving time during survey and installation while offering a safe alternative for your work force.
Load management unit with hard-wired Current Transformer, factory set at 60A
Whole House Consumption Limiting
Built in Matt:E technology
No Earth electrodes required
Current transformer with simple plug-and-play connection
Built-in 32A double pole Type A RCBO
Designed and built in the UK
Standard 3 Year parts warranty
BS:767118th Edition A1 compliant

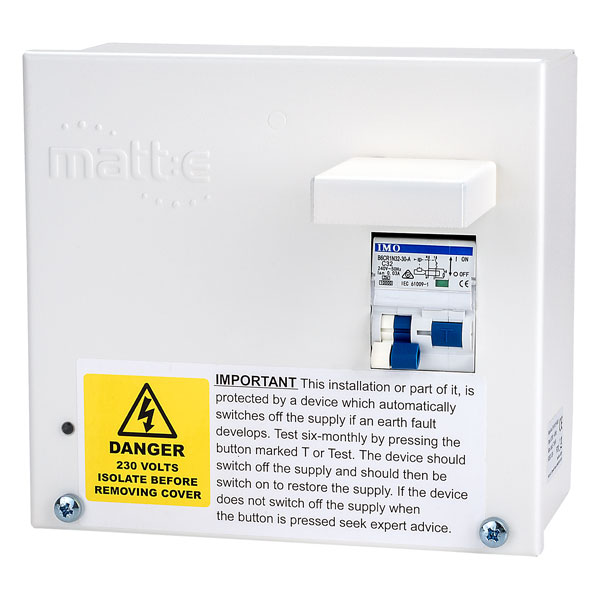

Matt:E type SP-EVCP-RC60-W
Colour
White
Dimensions (H x W x D)
169 x 182 x 111mm
Finish
Powder-coated
Frequency
50Hz
Guarantee
3 years
IP rating
IP2X
Material
Mild steel
Voltage rating
230V, single-phase
This unit is designed for use in domestic dwelling applications where a single phase PME supply is feeding Electric Vehicle Chargers. It should NOT be used in premises with 3 phase supplies. Click Here for 3-Phase versions.
