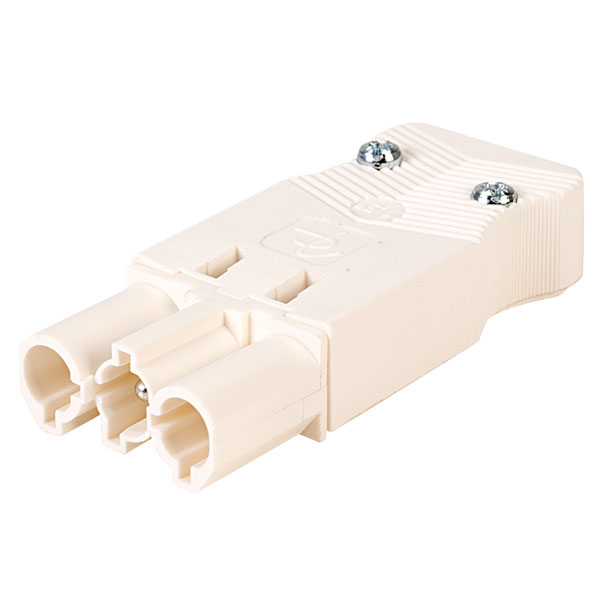

Metway 166GSTFW03 Male Connector Cable Mount 3 Pole White

This Metway 166G series, 3-pole cable mounting plug complies with EN 60 320 and is primarily intended for use with lighting equipment. Applications include digital dimming and three-phase supplies, especially where limited access requires the use of a low-profile moulding.

The connector has an extended earth plug fitted as standard and can be connected and disconnected under-load in accordance with VDE 0627. It is fully 'touchproof' when coupled or uncoupled. It is supplied complete with cover and base-plate in an unassembled condition.

• Cable-mounting 3-pole plug
• Colour: white
• Mouldings: nylon 6.6 (PA6/6), pastel blue
• Inserts: brass, tinned
• Temperature limits: max short-term: 160°C, continuous: 100°C
• Current rating: to EN 61 984: 16A / 400V at 70°C
• Conductor size: 1.5 to 2.5mm²
• Wire stripping length: 7mm
• Protection class: IP 20, IP 40 when connected
• Metway type 116GSTFW03
